#include <orderizer.h>

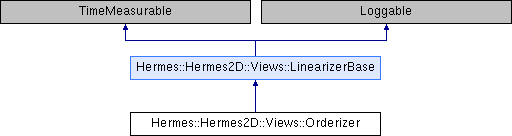

Inheritance diagram for Hermes::Hermes2D::Views::Orderizer:

Public Member Functions
template<typename Scalar >
void	process_space (const Space< Scalar > *space)

template<typename Scalar >
void	save_orders_vtk (const Space< Scalar > space, const char file_name)
	Saves a MeshFunction (Solution, Filter) in VTK format.

template<typename Scalar >
void	save_mesh_vtk (const Space< Scalar > space, const char file_name)

int	get_labels (int &lvert, char &ltext, double2 &lbox) const

void	calc_vertices_aabb (double min_x, double max_x, double min_y, double max_y) const
	Returns axis aligned bounding box (AABB) of vertices. Assumes lock.

int	get_num_vertices ()

double3 *	get_vertices ()

void	free ()

Public Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase
void	set_max_absolute_value (double max_abs)

double	get_min_value () const

double	get_max_value () const

void	lock_data () const

void	unlock_data () const

int3 *	get_triangles ()

int *	get_triangle_markers ()

int	get_num_triangles ()

int2 *	get_edges ()

int *	get_edge_markers ()

int	get_num_edges ()

virtual bool	is_empty ()

void	free ()
	Frees the instance.

Protected Member Functions
void	add_triangle (int iv0, int iv1, int iv2, int order, int marker)

void	add_edge (int iv1, int iv2, int marker)

int	add_vertex ()

void	make_vert (int &index, double x, double y, double val)

Protected Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase
	LinearizerBase (bool auto_max=true)

void	process_edge (int iv1, int iv2, int marker)

void	regularize_triangle (int iv0, int iv1, int iv2, int mid0, int mid1, int mid2, int marker)

int	peek_vertex (int p1, int p2)

void	add_edge (int iv1, int iv2, int marker)

void	add_triangle (int iv0, int iv1, int iv2, int marker)

int	hash (int p1, int p2)

Protected Attributes
char	buffer [1000]

char *	labels [11][11]

int *	tris_orders

double3 *	verts
	vertices: (x, y, value) triplets

int	label_size

int	label_count

int	cl1

int	cl2

int	cl3

int *	lvert

char **	ltext

double2 *	lbox

Protected Attributes inherited from Hermes::Hermes2D::Views::LinearizerBase
bool	empty

double	max

bool	auto_max

int3 *	tris
	triangles: vertex index triplets

int *	tri_markers
	triangle_markers: triangle markers, ordering equal to tris

int2 *	edges
	edges: pairs of vertex indices

int *	edge_markers
	edge_markers: edge markers, ordering equal to edges

int *	hash_table
	hash table

int4 *	info
	info[0] = p1, info[1] = p2, info[2] = next vertex in hash

int	vertex_count

int	triangle_count

int	edges_count
	Real numbers of vertices, triangles and edges.

int	vertex_size

int	triangle_size

int	edges_size
	Size of arrays of vertices, triangles and edges.

double	eps

double	min_val

double	max_val

int	del_slot
	free slot index after a triangle which was deleted

pthread_mutex_t	data_mutex

Hermes::Exceptions::Exception *	caughtException

Additional Inherited Members
Static Protected Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase
static void	calc_aabb (double x, double y, int stride, int num, double min_x, double max_x, double min_y, double max_y)
	Calculates AABB from an array of X-axis and Y-axis coordinates. The distance between values in the array is stride bytes.

Detailed Description

Like the Linearizer, but generates a triangular mesh showing polynomial orders in a space, hence the funky name.

Definition at line 30 of file orderizer.h.
