Represents a function defined on a mesh. More...

#include <mesh_function.h>

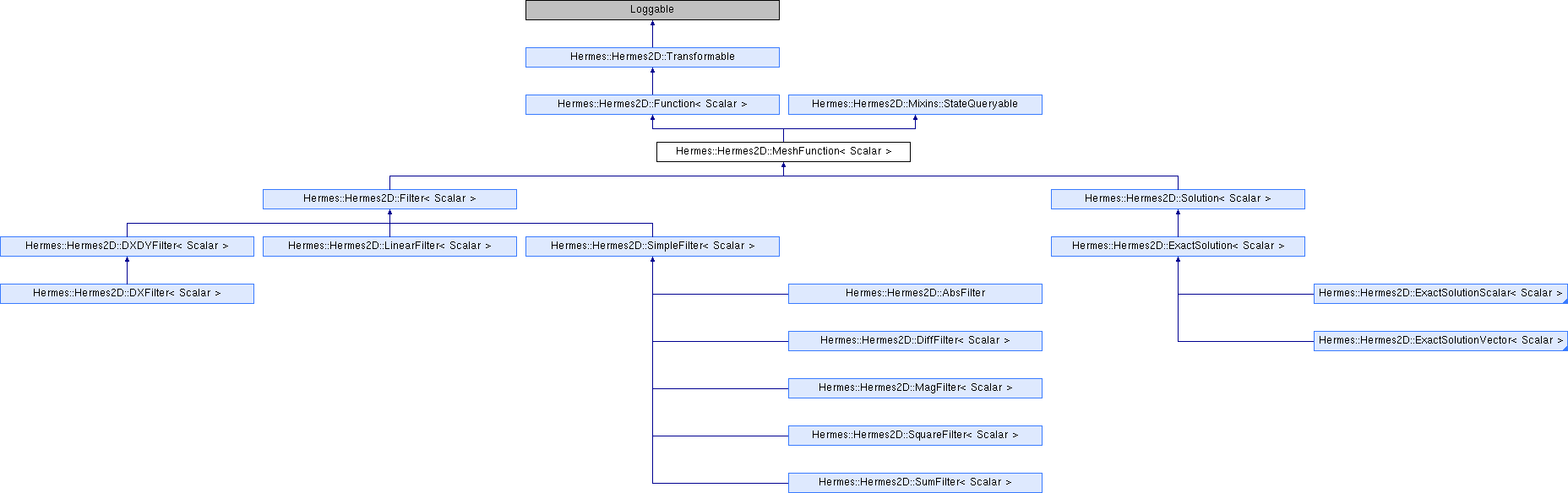

Inheritance diagram for Hermes::Hermes2D::MeshFunction< Scalar >:

Public Member Functions
	MeshFunction (const Mesh *mesh)

virtual bool	isOkay () const
	State querying helpers.

std::string	getClassName () const
	Get class name, for the purpose of messaging.

virtual void	init ()

virtual void	reinit ()

virtual void	set_quad_2d (Quad2D *quad_2d)
	Selects the quadrature points in which the function will be evaluated. More...

virtual void	set_active_element (Element *e)

const Mesh *	get_mesh () const

RefMap *	get_refmap (bool update=true)

void	set_refmap (RefMap *refmap_to_set)

virtual int	get_edge_fn_order (int edge)

virtual Func< Scalar > *	get_pt_value (double x, double y)=0
	Returns the value at the coordinates x,y.

virtual void	handle_overflow_idx ()

virtual void	push_transform (int son)
	See Transformable::push_transform.

virtual void	pop_transform ()

virtual MeshFunction< Scalar > *	clone () const

Public Member Functions inherited from Hermes::Hermes2D::Function< Scalar >
	Function ()
	Default constructor.

virtual	~Function ()

int	get_num_components () const
	Returns the number of components of the function being represented by the class.

Scalar *	get_fn_values (int component=0)
	Returns function values. More...

Scalar *	get_dx_values (int component=0)
	Returns the x partial derivative. More...

Scalar *	get_dy_values (int component=0)
	Returns the y partial derivative. More...

void	get_dx_dy_values (Scalar &dx, Scalar &dy, int component=0)
	Returns both x and y partial derivatives. This function provides the both often-used dx and dy values in one call. More...

Scalar *	get_dxx_values (int component=0)
	Returns the second x partial derivative. More...

Scalar *	get_dyy_values (int component=0)
	Returns the second y partial derivative. More...

Scalar *	get_dxy_values (int component=0)
	Returns the second mixed derivative. More...

Quad2D *	get_quad_2d () const
	Returns the current quadrature points.

void	set_quad_order (unsigned int order, int mask=H2D_FN_DEFAULT)

Scalar *	get_values (int a, int b)

int	get_fn_order () const
	Returns the polynomial degree of the function being represented by the class.

Public Member Functions inherited from Hermes::Hermes2D::Transformable
Element *	get_active_element () const

void	set_transform (uint64_t idx)

uint64_t	get_transform () const

Public Member Functions inherited from Hermes::Hermes2D::Mixins::StateQueryable
void	check () const
	Method to handle the state.

Protected Member Functions
void	force_transform (MeshFunction< Scalar > *mf)

void	update_refmap ()

void	force_transform (uint64_t sub_idx, Trf *ctm)

Protected Member Functions inherited from Hermes::Hermes2D::Function< Scalar >
virtual void	free ()=0
	Frees all precalculated tables.

virtual int	get_edge_fn_order (int edge) const
	Returns the polynomial degree of the function at given edge. To be overridden in derived classes. More...

virtual void	precalculate (int order, int mask)=0
	precalculates the current function at the current integration points.

void	update_nodes_ptr ()

void	force_transform (uint64_t sub_idx, Trf *ctm)
	For internal use only.

Node *	new_node (int mask, int num_points)
	allocates a new Node structure

void	replace_cur_node (Node *node)

Protected Member Functions inherited from Hermes::Hermes2D::Transformable
void	reset_transform ()
	Empties the stack, loads identity transform.

double	get_transform_jacobian () const

Trf *	get_ctm () const

unsigned int	get_depth () const

Protected Attributes
ElementMode2D	mode

const Mesh *	mesh

RefMap *	refmap

Protected Attributes inherited from Hermes::Hermes2D::Function< Scalar >
int	order
	current function polynomial order

int	num_components
	number of vector components

std::map< uint64_t, LightArray < Node * > * > *	sub_tables
	Table of Node tables, for each possible transformation there can be a different Node table.

LightArray< Node * > *	nodes
	Table of nodes.

Node *	cur_node
	Current Node.

LightArray< Node * > *	overflow_nodes
	Nodes for the overflow sub-element transformation.

Quad2D *	quads [8]
	list of available quadratures

int	cur_quad
	active quadrature (index into 'quads')

int	total_mem
	total memory in bytes used by the tables

int	max_mem
	peak memory usage

Protected Attributes inherited from Hermes::Hermes2D::Transformable
Element *	element
	The active element.

Trf *	ctm
	Current sub-element transformation matrix.

uint64_t	sub_idx
	Sub-element transformation index.

Trf	stack [21]
	Transformation matrix stack.

unsigned int	top
	Stack top.

Friends
class	RefMap

template<typename T >
class	KellyTypeAdapt

template<typename T >
class	Adapt

template<typename T >
class	Func

template<typename T >
class	Geom

template<typename T >
class	DiscontinuousFunc

template<typename T >
class	DiscreteProblem

template<typename T >
class	DiscreteProblemLinear

template<typename T >
class	NeighborSearch

template<typename T >
HERMES_API Func< T > *	init_fn (MeshFunction< T > *fu, const int order)

Additional Inherited Members
Static Protected Member Functions inherited from Hermes::Hermes2D::Function< Scalar >
static void	check_params (int component, Node *cur_node, int num_components)

static void	check_table (int component, Node cur_node, int n, const char msg)

Static Protected Attributes inherited from Hermes::Hermes2D::Function< Scalar >
static int	idx2mask [6][2]
	index to mask table More...

Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::MeshFunction< Scalar >

Represents a function defined on a mesh.

MeshFunction is a base class for all classes representing an arbitrary function superimposed on a mesh (ie., domain). These include the Solution, ExactSolution and Filter classes, which define the concrete behavior and the way the function is (pre)calculated. Any such function can later be visualized.

(This is an abstract class and cannot be instantiated.)

Definition at line 44 of file mesh_function.h.

Member Function Documentation

template<typename Scalar >

void Hermes::Hermes2D::MeshFunction< Scalar >::handle_overflow_idx ( )

virtual

Virtual function handling overflows. Has to be virtual, because the necessary iterators in the templated class do not work with GCC.

Implements Hermes::Hermes2D::Function< Scalar >.

Definition at line 129 of file mesh_function.cpp.

template<typename Scalar >

void Hermes::Hermes2D::MeshFunction< Scalar >::pop_transform ( )

virtual

Removes the current transformation matrix from the top of the stack. The new top becomes the current transformation matrix. This returns the transform to the state before the last push_transform() was performed.

Reimplemented from Hermes::Hermes2D::Transformable.

Reimplemented in Hermes::Hermes2D::ComplexFilter, Hermes::Hermes2D::Filter< Scalar >, Hermes::Hermes2D::Filter< double >, and Hermes::Hermes2D::Filter< std::complex< double > >.

Definition at line 149 of file mesh_function.cpp.

Referenced by Hermes::Hermes2D::Filter< Scalar >::pop_transform(), and Hermes::Hermes2D::ComplexFilter::pop_transform().

template<typename Scalar >

void Hermes::Hermes2D::MeshFunction< Scalar >::set_active_element ( Element * e )

virtual

Called by the assembling procedure and by other functions. In PrecalcShapeset it sets an internal variable that can be later retrieved by get_active_element(). In Solution it selects the element to retrieve solution values for, etc.

Parameters

e[in] Element associated with the function being represented by the class.

Reimplemented from Hermes::Hermes2D::Transformable.

Reimplemented in Hermes::Hermes2D::LinearFilter< Scalar >, Hermes::Hermes2D::Solution< Scalar >, Hermes::Hermes2D::ComplexFilter, Hermes::Hermes2D::Filter< Scalar >, Hermes::Hermes2D::Filter< double >, and Hermes::Hermes2D::Filter< std::complex< double > >.

Definition at line 120 of file mesh_function.cpp.

Referenced by Hermes::Hermes2D::NeighborSearch< Scalar >::init_ext_fn(), Hermes::Hermes2D::Filter< Scalar >::set_active_element(), and Hermes::Hermes2D::ComplexFilter::set_active_element().

template<typename Scalar >

void Hermes::Hermes2D::MeshFunction< Scalar >::set_quad_2d ( Quad2D * quad_2d )

virtual

Selects the quadrature points in which the function will be evaluated.

It is possible to switch back and forth between different quadrature points: no precalculated values are freed. The standard quadrature is always selected by default already.

Parameters

quad_2d[in] The quadrature points.

Reimplemented from Hermes::Hermes2D::Function< Scalar >.

Reimplemented in Hermes::Hermes2D::ComplexFilter, Hermes::Hermes2D::Filter< Scalar >, Hermes::Hermes2D::Filter< double >, and Hermes::Hermes2D::Filter< std::complex< double > >.

Definition at line 111 of file mesh_function.cpp.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble(), Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors(), Hermes::Hermes2D::Filter< Scalar >::set_quad_2d(), and Hermes::Hermes2D::ComplexFilter::set_quad_2d().

The documentation for this class was generated from the following files:
