#include <filter.h>

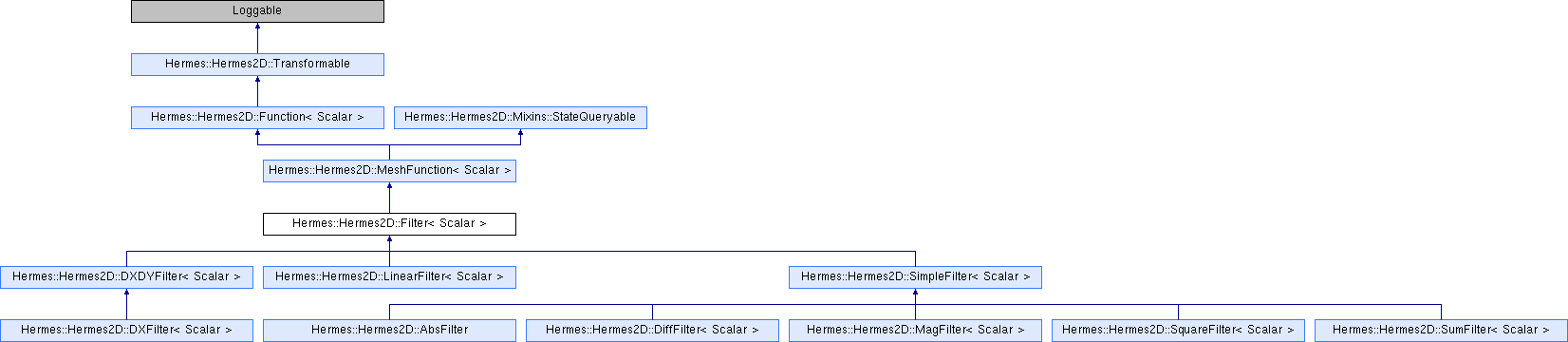

Inheritance diagram for Hermes::Hermes2D::Filter< Scalar >:
Public Member Functions | |
| Filter (const Hermes::vector< MeshFunction< Scalar > * > &solutions) | |
| Filter (MeshFunction< Scalar > **solutions, int num) | |
| Filter (const Hermes::vector< Solution< Scalar > * > &solutions) | |
| virtual void | reinit () |
| std::string | getClassName () const |
| State querying helpers. | |
| Public Member Functions inherited from Hermes::Hermes2D::MeshFunction< Scalar > | |
| MeshFunction (const Mesh *mesh) | |
| virtual bool | isOkay () const |
| State querying helpers. | |
| std::string | getClassName () const |
| Get class name, for the purpose of messaging. | |
| const Mesh * | get_mesh () const |
| RefMap * | get_refmap (bool update=true) |
| void | set_refmap (RefMap *refmap_to_set) |
| virtual int | get_edge_fn_order (int edge) |
| virtual Func< Scalar > * | get_pt_value (double x, double y)=0 |
| Returns the value at the coordinates x,y. | |
| virtual void | handle_overflow_idx () |
| virtual MeshFunction< Scalar > * | clone () const |
| Public Member Functions inherited from Hermes::Hermes2D::Function< Scalar > | |
| Function () | |
| Default constructor. | |
| virtual | ~Function () |
| int | get_num_components () const |
| Returns the number of components of the function being represented by the class. | |
| Scalar * | get_fn_values (int component=0) |
| Returns function values. More... | |
| Scalar * | get_dx_values (int component=0) |
| Returns the x partial derivative. More... | |
| Scalar * | get_dy_values (int component=0) |
| Returns the y partial derivative. More... | |
| void | get_dx_dy_values (Scalar *&dx, Scalar *&dy, int component=0) |
| Returns both x and y partial derivatives. This function provides the both often-used dx and dy values in one call. More... | |
| Scalar * | get_dxx_values (int component=0) |
| Returns the second x partial derivative. More... | |
| Scalar * | get_dyy_values (int component=0) |
| Returns the second y partial derivative. More... | |
| Scalar * | get_dxy_values (int component=0) |
| Returns the second mixed derivative. More... | |
| Quad2D * | get_quad_2d () const |
| Returns the current quadrature points. | |
| void | set_quad_order (unsigned int order, int mask=H2D_FN_DEFAULT) |
| Scalar * | get_values (int a, int b) |
| int | get_fn_order () const |
| Returns the polynomial degree of the function being represented by the class. | |
| Public Member Functions inherited from Hermes::Hermes2D::Transformable | |
| Element * | get_active_element () const |
| void | set_transform (uint64_t idx) |
| uint64_t | get_transform () const |
| Public Member Functions inherited from Hermes::Hermes2D::Mixins::StateQueryable | |
| void | check () const |
| Method to handle the state. | |
Protected Member Functions | |
| void | init (const Hermes::vector< MeshFunction< Scalar > * > &solutions) |
| virtual void | set_quad_2d (Quad2D *quad_2d) |
| Selects the quadrature points in which the function will be evaluated. More... | |
| virtual void | set_active_element (Element *e) |
| virtual void | free () |
| Frees all precalculated tables. | |
| virtual void | push_transform (int son) |
| See Transformable::push_transform. | |
| virtual void | pop_transform () |
| virtual void | init () |
| void | copy_base (Filter *flt) |
| virtual void | setDeleteSolutions () |
| Protected Member Functions inherited from Hermes::Hermes2D::MeshFunction< Scalar > | |
| void | force_transform (MeshFunction< Scalar > *mf) |
| void | update_refmap () |
| void | force_transform (uint64_t sub_idx, Trf *ctm) |
| Protected Member Functions inherited from Hermes::Hermes2D::Function< Scalar > | |
| virtual int | get_edge_fn_order (int edge) const |
| Returns the polynomial degree of the function at given edge. To be overridden in derived classes. More... | |
| virtual void | precalculate (int order, int mask)=0 |
| precalculates the current function at the current integration points. | |
| void | update_nodes_ptr () |
| void | force_transform (uint64_t sub_idx, Trf *ctm) |
| For internal use only. | |
| Node * | new_node (int mask, int num_points) |
| allocates a new Node structure | |
| void | replace_cur_node (Node *node) |
| Protected Member Functions inherited from Hermes::Hermes2D::Transformable | |
| void | reset_transform () |
| Empties the stack, loads identity transform. | |
| double | get_transform_jacobian () const |
| Trf * | get_ctm () const |
| unsigned int | get_depth () const |
Protected Attributes | |
| int | num |
| MeshFunction< Scalar > * | sln [H2D_MAX_COMPONENTS] |
| uint64_t | sln_sub [H2D_MAX_COMPONENTS] |
| std::map< uint64_t, LightArray < struct Filter< Scalar > ::Node * > * > | tables [H2D_MAX_QUADRATURES] |
| bool | unimesh |
| UniData ** | unidata |
| bool | deleteSolutions |
| Protected Attributes inherited from Hermes::Hermes2D::MeshFunction< Scalar > | |
| ElementMode2D | mode |
| const Mesh * | mesh |
| RefMap * | refmap |
| Protected Attributes inherited from Hermes::Hermes2D::Function< Scalar > | |
| int | order |
| current function polynomial order | |
| int | num_components |
| number of vector components | |
|
std::map< uint64_t, LightArray < Node * > * > * | sub_tables |
| Table of Node tables, for each possible transformation there can be a different Node table. | |
| LightArray< Node * > * | nodes |
| Table of nodes. | |
| Node * | cur_node |
| Current Node. | |
| LightArray< Node * > * | overflow_nodes |
| Nodes for the overflow sub-element transformation. | |
| Quad2D * | quads [8] |
| list of available quadratures | |
| int | cur_quad |
| active quadrature (index into 'quads') | |
| int | total_mem |
| total memory in bytes used by the tables | |
| int | max_mem |
| peak memory usage | |
| Protected Attributes inherited from Hermes::Hermes2D::Transformable | |
| Element * | element |
| The active element. | |
| Trf * | ctm |
| Current sub-element transformation matrix. | |
| uint64_t | sub_idx |
| Sub-element transformation index. | |
| Trf | stack [21] |
| Transformation matrix stack. | |
| unsigned int | top |
| Stack top. | |
Additional Inherited Members | |
| Static Protected Member Functions inherited from Hermes::Hermes2D::Function< Scalar > | |
| static void | check_params (int component, Node *cur_node, int num_components) |
| static void | check_table (int component, Node *cur_node, int n, const char *msg) |
| Static Protected Attributes inherited from Hermes::Hermes2D::Function< Scalar > | |
| static int | idx2mask [6][2] |
| index to mask table More... | |
Detailed Description
template<typename Scalar>
class Hermes::Hermes2D::Filter< Scalar >
Filter is a general postprocessing class, intended for visualization. The output of Filter is an arbitrary combination of up to three input functions, which usually are Solutions to PDEs, but can also be other Filters.
(This class cannot be instantiated.)
Member Function Documentation
|
protectedvirtual |
Removes the current transformation matrix from the top of the stack. The new top becomes the current transformation matrix. This returns the transform to the state before the last push_transform() was performed.
Reimplemented from Hermes::Hermes2D::MeshFunction< Scalar >.
Reimplemented in Hermes::Hermes2D::ComplexFilter.
Definition at line 232 of file filter.cpp.
|
protectedvirtual |
Called by the assembling procedure and by other functions. In PrecalcShapeset it sets an internal variable that can be later retrieved by get_active_element(). In Solution it selects the element to retrieve solution values for, etc.
- Parameters
-
e[in] Element associated with the function being represented by the class.
Reimplemented from Hermes::Hermes2D::MeshFunction< Scalar >.
Reimplemented in Hermes::Hermes2D::LinearFilter< Scalar >, and Hermes::Hermes2D::ComplexFilter.
Definition at line 145 of file filter.cpp.
Referenced by Hermes::Hermes2D::LinearFilter< Scalar >::set_active_element().
|
protectedvirtual |
Selects the quadrature points in which the function will be evaluated.
It is possible to switch back and forth between different quadrature points: no precalculated values are freed. The standard quadrature is always selected by default already.
- Parameters
-
quad_2d[in] The quadrature points.
Reimplemented from Hermes::Hermes2D::MeshFunction< Scalar >.
Reimplemented in Hermes::Hermes2D::ComplexFilter.
Definition at line 137 of file filter.cpp.
Member Data Documentation
|
protected |
There is a 2-layer structure of the precalculated tables. The first (the lowest) one is the layer where mapping of integral orders to Function::Node takes place. See function.h for details. The second one is the layer with mapping of sub-element transformation to a table from the lowest layer. The highest layer (in contrast to the PrecalcShapeset class) is represented here only by this array.
The documentation for this class was generated from the following files:
