Hermes::Hermes2D::Views::Linearizer Class Reference
#include <linearizer.h>

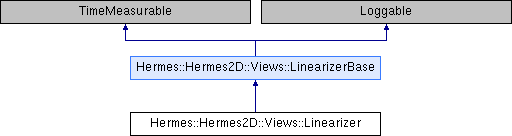

Inheritance diagram for Hermes::Hermes2D::Views::Linearizer:
Public Member Functions | |
| Linearizer (bool auto_max=true) | |
| void | process_solution (MeshFunction< double > *sln, int item=H2D_FN_VAL_0, double eps=HERMES_EPS_NORMAL) |
| void | save_solution_vtk (MeshFunction< double > *sln, const char *filename, const char *quantity_name, bool mode_3D=true, int item=H2D_FN_VAL_0, double eps=HERMES_EPS_NORMAL) |
| Saves a MeshFunction (Solution, Filter) in VTK format. | |
| void | set_displacement (MeshFunction< double > *xdisp, MeshFunction< double > *ydisp, double dmult=1.0) |
| void | calc_vertices_aabb (double *min_x, double *max_x, double *min_y, double *max_y) const |
| Returns axis aligned bounding box (AABB) of vertices. Assumes lock. | |
| int | get_num_vertices () |
| double3 * | get_vertices () |
| int3 * | get_contour_triangles () |
| int | get_num_contour_triangles () |
| void | set_curvature_epsilon (double curvature_epsilon) |
| double | get_curvature_epsilon () |
| Gets the 'curvature' epsilon determining the tolerance of catching the shape of curved elements. | |
| void | free () |
| Frees the instance. | |
| Public Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase | |
| void | set_max_absolute_value (double max_abs) |
| double | get_min_value () const |
| double | get_max_value () const |
| void | lock_data () const |
| void | unlock_data () const |
| int3 * | get_triangles () |
| int * | get_triangle_markers () |
| int | get_num_triangles () |
| int2 * | get_edges () |
| int * | get_edge_markers () |
| int | get_num_edges () |
| virtual bool | is_empty () |
| void | free () |
| Frees the instance. | |
Protected Member Functions | |
| int | add_vertex () |
| int | get_vertex (int p1, int p2, double x, double y, double value) |
| void | process_triangle (MeshFunction< double > **fns, int iv0, int iv1, int iv2, int level, double *val, double *phx, double *phy, int *indices, bool curved) |
| void | process_quad (MeshFunction< double > **fns, int iv0, int iv1, int iv2, int iv3, int level, double *val, double *phx, double *phy, int *indices, bool curved) |
| void | find_min_max () |
| Protected Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase | |
| LinearizerBase (bool auto_max=true) | |
| void | process_edge (int iv1, int iv2, int marker) |
| void | regularize_triangle (int iv0, int iv1, int iv2, int mid0, int mid1, int mid2, int marker) |
| int | peek_vertex (int p1, int p2) |
| void | add_edge (int iv1, int iv2, int marker) |
| void | add_triangle (int iv0, int iv1, int iv2, int marker) |
| int | hash (int p1, int p2) |
Protected Attributes | |
| double | curvature_epsilon |
| The 'curvature' epsilon. | |
| bool | user_xdisp |
| Information if user-supplied displacement functions have been provided. | |
| bool | user_ydisp |
| MeshFunction< double > * | xdisp |
| Displacement functions, default to ZeroFunctions, may be supplied by set_displacement();. | |
| MeshFunction< double > * | ydisp |
| double | dmult |
| int3 * | tris_contours |
| triangles: vertex index triplets | |
| int | triangle_contours_count |
| double3 * | verts |
| vertices: (x, y, value) triplets | |
| int | item |
| What kind of information do we want to get out of the solution. | |
| int | component |
| int | value_type |
| Protected Attributes inherited from Hermes::Hermes2D::Views::LinearizerBase | |
| bool | empty |
| double | max |
| bool | auto_max |
| int3 * | tris |
| triangles: vertex index triplets | |
| int * | tri_markers |
| triangle_markers: triangle markers, ordering equal to tris | |
| int2 * | edges |
| edges: pairs of vertex indices | |
| int * | edge_markers |
| edge_markers: edge markers, ordering equal to edges | |
| int * | hash_table |
| hash table | |
| int4 * | info |
| info[0] = p1, info[1] = p2, info[2] = next vertex in hash | |
| int | vertex_count |
| int | triangle_count |
| int | edges_count |
| Real numbers of vertices, triangles and edges. | |
| int | vertex_size |
| int | triangle_size |
| int | edges_size |
| Size of arrays of vertices, triangles and edges. | |
| double | eps |
| double | min_val |
| double | max_val |
| int | del_slot |
| free slot index after a triangle which was deleted | |
| pthread_mutex_t | data_mutex |
| Hermes::Exceptions::Exception * | caughtException |
Additional Inherited Members | |
| Static Protected Member Functions inherited from Hermes::Hermes2D::Views::LinearizerBase | |
| static void | calc_aabb (double *x, double *y, int stride, int num, double *min_x, double *max_x, double *min_y, double *max_y) |
| Calculates AABB from an array of X-axis and Y-axis coordinates. The distance between values in the array is stride bytes. | |
Detailed Description
Linearizer is a utility class which converts a higher-order FEM solution defined on a curvilinear, irregular mesh to a linear FEM solution defined on a straight-edged, regular mesh. This is done by adaptive refinement of the higher-order mesh and its subsequent regularization. The linearized mesh can then be easily displayed or exported to standard formats. The class correctly handles discontinuities in the solution (e.g., gradients or in Hcurl) by inserting double vertices where necessary. Linearizer also serves as a container for the resulting linearized mesh.
Definition at line 37 of file linearizer.h.
Member Function Documentation
| void Linearizer::set_curvature_epsilon | ( | double | curvature_epsilon | ) |
Sets the threshold for how fine the output for curved elements.
- Parameters
-
[in] curvature_epsilon The 'curvature' epsilon determining the tolerance of catching the shape of curved elements. The smaller, the finer. Default value = 1e-3.
Definition at line 307 of file linearizer.cpp.
