Hermes::Hermes2D::DiscreteProblemLinear< Scalar > Class Template Reference

#include <discrete_problem_linear.h>

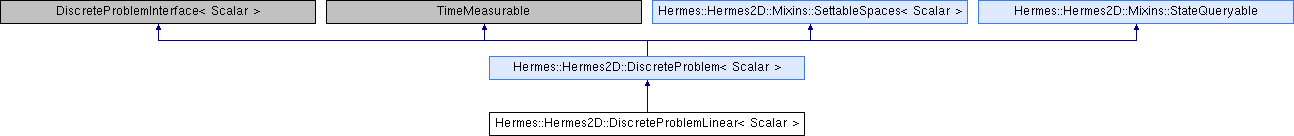

Inheritance diagram for Hermes::Hermes2D::DiscreteProblemLinear< Scalar >:

Public Member Functions
	DiscreteProblemLinear (const WeakForm< Scalar > *wf, Hermes::vector< const Space< Scalar > * > spaces)
	Constructor for multiple components / equations.
	DiscreteProblemLinear (const WeakForm< Scalar > *wf, const Space< Scalar > *space)
	Constructor for one equation.
	DiscreteProblemLinear ()
	Empty constructor for special purposes.
virtual	~DiscreteProblemLinear ()
	Destuctor.
virtual void	assemble (SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)
Public Member Functions inherited from Hermes::Hermes2D::DiscreteProblem< Scalar >
	DiscreteProblem (const WeakForm< Scalar > *wf, Hermes::vector< const Space< Scalar > * > spaces)
	Constructor for multiple components / equations.
	DiscreteProblem (const WeakForm< Scalar > *wf, const Space< Scalar > *space)
	Constructor for one equation.
virtual bool	isOkay () const
	State querying helpers.
virtual std::string	getClassName () const
	Get class name, for the purpose of messaging.
void	set_fvm ()
	Set this problem to Finite Volume (no integration order calculation).
virtual void	set_spaces (Hermes::vector< const Space< Scalar > * > spaces)
	Sets new spaces for the instance. More...
virtual void	set_space (const Space< Scalar > *space)
	DiscreteProblem ()
	Non-parameterized constructor.
virtual	~DiscreteProblem ()
	Destuctor.
void	set_do_not_use_cache ()
	If the cache should not be used for any reason.
const WeakForm< Scalar > *	get_weak_formulation () const
	Get the weak forms.
void	set_weak_formulation (const WeakForm< Scalar > *wf)
	Set the weak forms.
virtual Hermes::vector< const Space< Scalar > * >	get_spaces () const
	Get all spaces as a Hermes::vector.
int	get_num_dofs () const
	Get the number of unknowns.
bool	is_matrix_free () const
	Get info about presence of a matrix.
virtual void	set_time (double time)
	set time information for time-dependent problems.
virtual void	set_time_step (double time_step)
void	delete_cache ()
void	assemble (Scalar *coeff_vec, SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)
void	assemble (Scalar *coeff_vec, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)
void	assemble (Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)
Public Member Functions inherited from Hermes::Hermes2D::Mixins::SettableSpaces< Scalar >
virtual const Space< Scalar > *	get_space (int n) const
Public Member Functions inherited from Hermes::Hermes2D::Mixins::StateQueryable
void	check () const
	Method to handle the state.

Protected Member Functions
virtual void	assemble_matrix_form (MatrixForm< Scalar > *form, int order, Func< double > **base_fns, Func< double > **test_fns, Func< Scalar > **ext, Func< Scalar > **u_ext, AsmList< Scalar > *current_als_i, AsmList< Scalar > *current_als_j, Traverse::State *current_state, int n_quadrature_points, Geom< double > *geometry, double *jacobian_x_weights)
Protected Member Functions inherited from Hermes::Hermes2D::DiscreteProblem< Scalar >
void	init_assembling (Scalar *coeff_vec, PrecalcShapeset ***pss, PrecalcShapeset ***spss, RefMap ***refmaps, Solution< Scalar > ***u_ext, AsmList< Scalar > ***als, WeakForm< Scalar > **weakforms)
void	deinit_assembling (PrecalcShapeset ***pss, PrecalcShapeset ***spss, RefMap ***refmaps, Solution< Scalar > ***u_ext, AsmList< Scalar > ***als, WeakForm< Scalar > **weakforms)
bool	form_to_be_assembled (MatrixForm< Scalar > *form, Traverse::State *current_state)
	The form will be assembled.
bool	form_to_be_assembled (MatrixFormVol< Scalar > *form, Traverse::State *current_state)
bool	form_to_be_assembled (MatrixFormSurf< Scalar > *form, Traverse::State *current_state)
bool	form_to_be_assembled (VectorForm< Scalar > *form, Traverse::State *current_state)
bool	form_to_be_assembled (VectorFormVol< Scalar > *form, Traverse::State *current_state)
bool	form_to_be_assembled (VectorFormSurf< Scalar > *form, Traverse::State *current_state)
double	block_scaling_coeff (MatrixForm< Scalar > *form) const
void	create_sparse_structure ()
void	create_sparse_structure (SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL)
void	set_RK (int original_spaces_count)
	Set the special handling of external functions of Runge-Kutta methods, including information how many spaces were there in the original problem.
bool	state_needs_recalculation (AsmList< Scalar > **current_als, Traverse::State *current_state)
void	calculate_cache_records (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, AsmList< Scalar > **current_alsSurface, WeakForm< Scalar > *current_wf)
	Calculate cache records for this set of parameters.
void	assemble_one_state (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, WeakForm< Scalar > *current_wf)
	Assemble one state.
void	adjust_order_to_refmaps (Form< Scalar > *form, int &order, Hermes::Ord *o, RefMap **current_refmaps)
	Adjusts order to refmaps.
int	calc_order_matrix_form (MatrixForm< Scalar > *mfv, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, Traverse::State *current_state)
	Matrix volumetric forms - calculate the integration order.
int	calc_order_vector_form (VectorForm< Scalar > *mfv, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, Traverse::State *current_state)
	Vector volumetric forms - calculate the integration order.
void	assemble_vector_form (VectorForm< Scalar > *form, int order, Func< double > **test_fns, Func< Scalar > **ext, Func< Scalar > **u_ext, AsmList< Scalar > *current_als, Traverse::State *current_state, int n_quadrature_points, Geom< double > *geometry, double *jacobian_x_weights)
	Vector volumetric forms - assemble the form.
void	init_ext_orders (Form< Scalar > *form, Func< Hermes::Ord > **oi, Func< Hermes::Ord > **oext, Solution< Scalar > **current_u_ext, Traverse::State *current_state)
void	deinit_ext_orders (Form< Scalar > *form, Func< Hermes::Ord > **oi, Func< Hermes::Ord > **oext)
void	init ()
	Init function. Common code for the constructors.
bool	is_up_to_date () const
	Matrix structure as well as spaces and weak formulation is up-to-date.
void	assemble_one_DG_state (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, Hermes::vector< MatrixFormDG< Scalar > * > current_mfDG, Hermes::vector< VectorFormDG< Scalar > * > current_vfDG, Transformable **fn)
	Assemble DG forms. More...
void	assemble_DG_one_neighbor (bool edge_processed, unsigned int neighbor_i, PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, Hermes::vector< MatrixFormDG< Scalar > * > current_mfDG, Hermes::vector< VectorFormDG< Scalar > * > current_vfDG, Transformable **fn, std::map< unsigned int, PrecalcShapeset * > npss, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, unsigned int min_dg_mesh_seq)
	Assemble one DG neighbor.
void	assemble_DG_matrix_forms (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, MatrixFormDG< Scalar > **current_mfDG, std::map< unsigned int, PrecalcShapeset * > npss, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
	Assemble DG matrix forms.
void	assemble_DG_vector_forms (PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, VectorFormDG< Scalar > **current_vfDG, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
	Assemble DG vector forms.
DiscontinuousFunc< Hermes::Ord > *	init_ext_fn_ord (NeighborSearch< Scalar > *ns, MeshFunction< Scalar > *fu)
int	calc_order_dg_matrix_form (MatrixFormDG< Scalar > *mfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fu, PrecalcShapeset *fv, RefMap *ru, SurfPos *surf_pos, bool neighbor_supp_u, bool neighbor_supp_v, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_u)
	Calculates integration order for DG matrix forms.
Scalar	eval_dg_form (MatrixFormDG< Scalar > *mfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fu, PrecalcShapeset *fv, RefMap *ru_central, RefMap *ru_actual, RefMap *rv, bool neighbor_supp_u, bool neighbor_supp_v, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_u, int neighbor_index_v)
	Evaluates DG matrix forms on an edge between elements identified by ru_actual, rv.
int	calc_order_dg_vector_form (VectorFormDG< Scalar > *vfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fv, RefMap *ru, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_v)
	Calculates integration order for DG vector forms.
Scalar	eval_dg_form (VectorFormDG< Scalar > *vfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fv, RefMap *rv, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_v)
	Evaluates DG vector forms on an edge between elements identified by ru_actual, rv.
Func< Hermes::Ord > **	init_ext_fns_ord (Hermes::vector< MeshFunction< Scalar > * > &ext, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
	Initialize orders of external functions for DG forms.
Func< Scalar > **	init_ext_fns (Hermes::vector< MeshFunction< Scalar > * > &ext, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int order, unsigned int min_dg_mesh_seq)
	Initialize external functions for DG forms.
bool	init_neighbors (LightArray< NeighborSearch< Scalar > * > &neighbor_searches, Traverse::State *current_state, unsigned int min_dg_mesh_seq)
	Initialize neighbors.
void	build_multimesh_tree (NeighborNode *root, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
	Initialize the tree for traversing multimesh neighbors.
void	insert_into_multimesh_tree (NeighborNode *node, unsigned int *transformations, unsigned int transformation_count)
	Recursive insertion function into the tree.
Hermes::vector< Hermes::vector < unsigned int > * >	get_multimesh_neighbors_transformations (NeighborNode *multimesh_tree)
	Return a global (unified list of central element transformations representing the neighbors on the union mesh.
void	traverse_multimesh_tree (NeighborNode *node, Hermes::vector< Hermes::vector< unsigned int > * > &running_transformations)
	Traverse the multimesh tree. Used in the function get_multimesh_neighbors_transformations().
void	update_neighbor_search (NeighborSearch< Scalar > *ns, NeighborNode *multimesh_tree)
	Update the NeighborSearch according to the multimesh tree.
NeighborNode *	find_node (unsigned int *transformations, unsigned int transformation_count, NeighborNode *node)
int	update_ns_subtree (NeighborSearch< Scalar > *ns, NeighborNode *node, unsigned int ith_neighbor)
void	traverse_multimesh_subtree (NeighborNode *node, Hermes::vector< Hermes::vector< unsigned int > * > &running_central_transformations, Hermes::vector< Hermes::vector< unsigned int > * > &running_neighbor_transformations, const typename NeighborSearch< Scalar >::NeighborEdgeInfo &edge_info, const int &active_edge, const int &mode)
	Traverse the multimesh subtree. Used in the function update_ns_subtree().

Friends
template<typename T >
class	KellyTypeAdapt
template<typename T >
class	NewtonSolver
template<typename T >
class	PicardSolver
template<typename T >
class	RungeKutta
template<typename T >
class	LinearSolver

Additional Inherited Members
Static Public Member Functions inherited from Hermes::Hermes2D::DiscreteProblem< Scalar >
static int	init_geometry_points (RefMap *reference_mapping, int order, Geom< double > *&geometry, double *&jacobian_x_weights)
static int	init_surface_geometry_points (RefMap *reference_mapping, int &order, Traverse::State *current_state, Geom< double > *&geometry, double *&jacobian_x_weights)
Protected Attributes inherited from Hermes::Hermes2D::DiscreteProblem< Scalar >
const WeakForm< Scalar > *	wf
	Weak formulation.
Hermes::vector< const Space < Scalar > * >	spaces
	Space instances for all equations in the system.
Hermes::vector< unsigned int >	spaces_first_dofs
int *	sp_seq
	Seq numbers of Space instances in spaces.
int	ndof
	Number of DOFs of all Space instances in spaces.
Geom< Hermes::Ord >	geom_ord
	Instance of the class Geom used in the calculation of integration order.
bool	is_fvm
bool	is_linear
	Internal.
bool	have_matrix
bool	DG_matrix_forms_present
	There is a matrix form set on DG_INNER_EDGE area or not.
bool	DG_vector_forms_present
	There is a vector form set on DG_INNER_EDGE area or not.
bool	RungeKutta
	Turn on Runge-Kutta specific handling of external functions.
int	RK_original_spaces_count
	Number of spaces in the original problem in a Runge-Kutta method.
SparseMatrix< Scalar > *	current_mat
	Storing assembling info.
Vector< Scalar > *	current_rhs
bool	current_force_diagonal_blocks
Table *	current_block_weights
std::map< uint64_t, CacheRecordPerSubIdx * > ***	cache_records_sub_idx
CacheRecordPerElement ***	cache_records_element
bool **	cache_element_stored
int	cache_size
bool	do_not_use_cache
Hermes::Exceptions::Exception *	caughtException
	Exception caught in a parallel region.
Static Protected Attributes inherited from Hermes::Hermes2D::DiscreteProblem< Scalar >
static double	fake_wt = 1.0
	Fake weight used in the calculation of integration order.

Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::DiscreteProblemLinear< Scalar >

SIMPLIFICATION of Discrete problem class for LINEAR PROBLEMS.

This class does assembling into external matrix / vector structures.

Definition at line 31 of file discrete_problem_linear.h.

Member Function Documentation

template<typename Scalar >

void Hermes::Hermes2D::DiscreteProblemLinear< Scalar >::assemble ( SparseMatrix< Scalar > *  mat, Vector< Scalar > *  rhs = NULL, bool  force_diagonal_blocks = false, Table *  block_weights = NULL  )

virtual

Assembling. Light version, linear problems.

Todo:

Should this be really here? Or in assemble()?

Reimplemented from Hermes::Hermes2D::DiscreteProblem< Scalar >.

Definition at line 60 of file discrete_problem_linear.cpp.

template<typename Scalar >

void Hermes::Hermes2D::DiscreteProblemLinear< Scalar >::assemble_matrix_form ( MatrixForm< Scalar > *  form, int  order, Func< double > **  base_fns, Func< double > **  test_fns, Func< Scalar > **  ext, Func< Scalar > **  u_ext, AsmList< Scalar > *  current_als_i, AsmList< Scalar > *  current_als_j, Traverse::State *  current_state, int  n_quadrature_points, Geom< double > *  geometry, double *  jacobian_x_weights  )

protectedvirtual

Methods different to those of the parent class. Matrix forms.

Reimplemented from Hermes::Hermes2D::DiscreteProblem< Scalar >.

Definition at line 227 of file discrete_problem_linear.cpp.

---

The documentation for this class was generated from the following files:

• discrete_problem_linear.h
• discrete_problem_linear.cpp
