Hermes::Hermes2D::DiscreteProblem< Scalar > Class Template Reference

#include <discrete_problem.h>

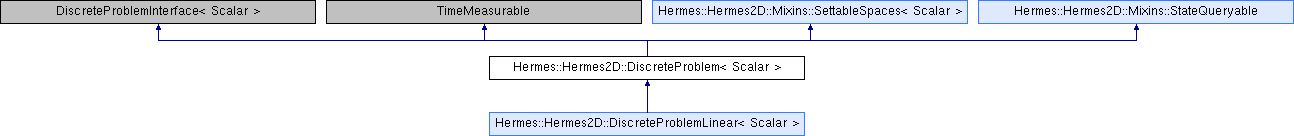

+ Inheritance diagram for Hermes::Hermes2D::DiscreteProblem< Scalar >:

Classes

class  CacheRecordPerElement
 Caching. More...

class  CacheRecordPerSubIdx


Public Member Functions

 DiscreteProblem (const WeakForm< Scalar > *wf, Hermes::vector< const Space< Scalar > * > spaces)
 Constructor for multiple components / equations.

 DiscreteProblem (const WeakForm< Scalar > *wf, const Space< Scalar > *space)
 Constructor for one equation.

virtual bool isOkay () const
 State querying helpers.

virtual std::string getClassName () const
 Get class name, for the purpose of messaging.

void set_fvm ()
 Set this problem to Finite Volume (no integration order calculation).

virtual void set_spaces (Hermes::vector< const Space< Scalar > * > spaces)
 Sets new spaces for the instance. More...

virtual void set_space (const Space< Scalar > *space)

 DiscreteProblem ()
 Non-parameterized constructor.

virtual ~DiscreteProblem ()
 Destuctor.

void set_do_not_use_cache ()
 If the cache should not be used for any reason.

const WeakForm< Scalar > * get_weak_formulation () const
 Get the weak forms.

void set_weak_formulation (const WeakForm< Scalar > *wf)
 Set the weak forms.

virtual Hermes::vector< const
Space< Scalar > * >
get_spaces () const
 Get all spaces as a Hermes::vector.

int get_num_dofs () const
 Get the number of unknowns.

bool is_matrix_free () const
 Get info about presence of a matrix.

virtual void set_time (double time)
 set time information for time-dependent problems.

virtual void set_time_step (double time_step)

void delete_cache ()

void assemble (Scalar *coeff_vec, SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)

void assemble (Scalar *coeff_vec, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)

virtual void assemble (SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)

void assemble (Vector< Scalar > *rhs=NULL, bool force_diagonal_blocks=false, Table *block_weights=NULL)

- Public Member Functions inherited from Hermes::Hermes2D::Mixins::SettableSpaces< Scalar >
virtual const Space< Scalar > * get_space (int n) const

- Public Member Functions inherited from Hermes::Hermes2D::Mixins::StateQueryable
void check () const
 Method to handle the state.


Static Public Member Functions

static int init_geometry_points (RefMap *reference_mapping, int order, Geom< double > *&geometry, double *&jacobian_x_weights)

static int init_surface_geometry_points (RefMap *reference_mapping, int &order, Traverse::State *current_state, Geom< double > *&geometry, double *&jacobian_x_weights)


Protected Member Functions

void init_assembling (Scalar *coeff_vec, PrecalcShapeset ***pss, PrecalcShapeset ***spss, RefMap ***refmaps, Solution< Scalar > ***u_ext, AsmList< Scalar > ***als, WeakForm< Scalar > **weakforms)

void deinit_assembling (PrecalcShapeset ***pss, PrecalcShapeset ***spss, RefMap ***refmaps, Solution< Scalar > ***u_ext, AsmList< Scalar > ***als, WeakForm< Scalar > **weakforms)

bool form_to_be_assembled (MatrixForm< Scalar > *form, Traverse::State *current_state)
 The form will be assembled.

bool form_to_be_assembled (MatrixFormVol< Scalar > *form, Traverse::State *current_state)

bool form_to_be_assembled (MatrixFormSurf< Scalar > *form, Traverse::State *current_state)

bool form_to_be_assembled (VectorForm< Scalar > *form, Traverse::State *current_state)

bool form_to_be_assembled (VectorFormVol< Scalar > *form, Traverse::State *current_state)

bool form_to_be_assembled (VectorFormSurf< Scalar > *form, Traverse::State *current_state)

double block_scaling_coeff (MatrixForm< Scalar > *form) const

void create_sparse_structure ()

void create_sparse_structure (SparseMatrix< Scalar > *mat, Vector< Scalar > *rhs=NULL)

void set_RK (int original_spaces_count)
 Set the special handling of external functions of Runge-Kutta methods, including information how many spaces were there in the original problem.

bool state_needs_recalculation (AsmList< Scalar > **current_als, Traverse::State *current_state)

void calculate_cache_records (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, AsmList< Scalar > **current_alsSurface, WeakForm< Scalar > *current_wf)
 Calculate cache records for this set of parameters.

void assemble_one_state (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, WeakForm< Scalar > *current_wf)
 Assemble one state.

void adjust_order_to_refmaps (Form< Scalar > *form, int &order, Hermes::Ord *o, RefMap **current_refmaps)
 Adjusts order to refmaps.

int calc_order_matrix_form (MatrixForm< Scalar > *mfv, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, Traverse::State *current_state)
 Matrix volumetric forms - calculate the integration order.

virtual void assemble_matrix_form (MatrixForm< Scalar > *form, int order, Func< double > **base_fns, Func< double > **test_fns, Func< Scalar > **ext, Func< Scalar > **u_ext, AsmList< Scalar > *current_als_i, AsmList< Scalar > *current_als_j, Traverse::State *current_state, int n_quadrature_points, Geom< double > *geometry, double *jacobian_x_weights)
 Matrix volumetric forms - assemble the form.

int calc_order_vector_form (VectorForm< Scalar > *mfv, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, Traverse::State *current_state)
 Vector volumetric forms - calculate the integration order.

void assemble_vector_form (VectorForm< Scalar > *form, int order, Func< double > **test_fns, Func< Scalar > **ext, Func< Scalar > **u_ext, AsmList< Scalar > *current_als, Traverse::State *current_state, int n_quadrature_points, Geom< double > *geometry, double *jacobian_x_weights)
 Vector volumetric forms - assemble the form.

void init_ext_orders (Form< Scalar > *form, Func< Hermes::Ord > **oi, Func< Hermes::Ord > **oext, Solution< Scalar > **current_u_ext, Traverse::State *current_state)

void deinit_ext_orders (Form< Scalar > *form, Func< Hermes::Ord > **oi, Func< Hermes::Ord > **oext)

void init ()
 Init function. Common code for the constructors.

bool is_up_to_date () const
 Matrix structure as well as spaces and weak formulation is up-to-date.

void assemble_one_DG_state (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, Hermes::vector< MatrixFormDG< Scalar > * > current_mfDG, Hermes::vector< VectorFormDG< Scalar > * > current_vfDG, Transformable **fn)
 Assemble DG forms. More...

void assemble_DG_one_neighbor (bool edge_processed, unsigned int neighbor_i, PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, Hermes::vector< MatrixFormDG< Scalar > * > current_mfDG, Hermes::vector< VectorFormDG< Scalar > * > current_vfDG, Transformable **fn, std::map< unsigned int, PrecalcShapeset * > npss, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, unsigned int min_dg_mesh_seq)
 Assemble one DG neighbor.

void assemble_DG_matrix_forms (PrecalcShapeset **current_pss, PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, MatrixFormDG< Scalar > **current_mfDG, std::map< unsigned int, PrecalcShapeset * > npss, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
 Assemble DG matrix forms.

void assemble_DG_vector_forms (PrecalcShapeset **current_spss, RefMap **current_refmaps, Solution< Scalar > **current_u_ext, AsmList< Scalar > **current_als, Traverse::State *current_state, VectorFormDG< Scalar > **current_vfDG, std::map< unsigned int, PrecalcShapeset * > nspss, std::map< unsigned int, RefMap * > nrefmap, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
 Assemble DG vector forms.

DiscontinuousFunc< Hermes::Ord > * init_ext_fn_ord (NeighborSearch< Scalar > *ns, MeshFunction< Scalar > *fu)

int calc_order_dg_matrix_form (MatrixFormDG< Scalar > *mfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fu, PrecalcShapeset *fv, RefMap *ru, SurfPos *surf_pos, bool neighbor_supp_u, bool neighbor_supp_v, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_u)
 Calculates integration order for DG matrix forms.

Scalar eval_dg_form (MatrixFormDG< Scalar > *mfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fu, PrecalcShapeset *fv, RefMap *ru_central, RefMap *ru_actual, RefMap *rv, bool neighbor_supp_u, bool neighbor_supp_v, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_u, int neighbor_index_v)
 Evaluates DG matrix forms on an edge between elements identified by ru_actual, rv.

int calc_order_dg_vector_form (VectorFormDG< Scalar > *vfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fv, RefMap *ru, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_v)
 Calculates integration order for DG vector forms.

Scalar eval_dg_form (VectorFormDG< Scalar > *vfDG, Hermes::vector< Solution< Scalar > * > u_ext, PrecalcShapeset *fv, RefMap *rv, SurfPos *surf_pos, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int neighbor_index_v)
 Evaluates DG vector forms on an edge between elements identified by ru_actual, rv.

Func< Hermes::Ord > ** init_ext_fns_ord (Hermes::vector< MeshFunction< Scalar > * > &ext, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
 Initialize orders of external functions for DG forms.

Func< Scalar > ** init_ext_fns (Hermes::vector< MeshFunction< Scalar > * > &ext, LightArray< NeighborSearch< Scalar > * > &neighbor_searches, int order, unsigned int min_dg_mesh_seq)
 Initialize external functions for DG forms.

bool init_neighbors (LightArray< NeighborSearch< Scalar > * > &neighbor_searches, Traverse::State *current_state, unsigned int min_dg_mesh_seq)
 Initialize neighbors.

void build_multimesh_tree (NeighborNode *root, LightArray< NeighborSearch< Scalar > * > &neighbor_searches)
 Initialize the tree for traversing multimesh neighbors.

void insert_into_multimesh_tree (NeighborNode *node, unsigned int *transformations, unsigned int transformation_count)
 Recursive insertion function into the tree.

Hermes::vector< Hermes::vector
< unsigned int > * >
get_multimesh_neighbors_transformations (NeighborNode *multimesh_tree)
 Return a global (unified list of central element transformations representing the neighbors on the union mesh.

void traverse_multimesh_tree (NeighborNode *node, Hermes::vector< Hermes::vector< unsigned int > * > &running_transformations)
 Traverse the multimesh tree. Used in the function get_multimesh_neighbors_transformations().

void update_neighbor_search (NeighborSearch< Scalar > *ns, NeighborNode *multimesh_tree)
 Update the NeighborSearch according to the multimesh tree.

NeighborNodefind_node (unsigned int *transformations, unsigned int transformation_count, NeighborNode *node)

int update_ns_subtree (NeighborSearch< Scalar > *ns, NeighborNode *node, unsigned int ith_neighbor)

void traverse_multimesh_subtree (NeighborNode *node, Hermes::vector< Hermes::vector< unsigned int > * > &running_central_transformations, Hermes::vector< Hermes::vector< unsigned int > * > &running_neighbor_transformations, const typename NeighborSearch< Scalar >::NeighborEdgeInfo &edge_info, const int &active_edge, const int &mode)
 Traverse the multimesh subtree. Used in the function update_ns_subtree().


Protected Attributes

const WeakForm< Scalar > * wf
 Weak formulation.

Hermes::vector< const Space
< Scalar > * >
spaces
 Space instances for all equations in the system.

Hermes::vector< unsigned int > spaces_first_dofs

int * sp_seq
 Seq numbers of Space instances in spaces.

int ndof
 Number of DOFs of all Space instances in spaces.

Geom< Hermes::Ord > geom_ord
 Instance of the class Geom used in the calculation of integration order.

bool is_fvm

bool is_linear
 Internal.

bool have_matrix

bool DG_matrix_forms_present
 There is a matrix form set on DG_INNER_EDGE area or not.

bool DG_vector_forms_present
 There is a vector form set on DG_INNER_EDGE area or not.

bool RungeKutta
 Turn on Runge-Kutta specific handling of external functions.

int RK_original_spaces_count
 Number of spaces in the original problem in a Runge-Kutta method.

SparseMatrix< Scalar > * current_mat
 Storing assembling info.

Vector< Scalar > * current_rhs

bool current_force_diagonal_blocks

Table * current_block_weights

std::map< uint64_t,
CacheRecordPerSubIdx * > ***
cache_records_sub_idx

CacheRecordPerElement *** cache_records_element

bool ** cache_element_stored

int cache_size

bool do_not_use_cache

Hermes::Exceptions::Exception * caughtException
 Exception caught in a parallel region.


Static Protected Attributes

static double fake_wt = 1.0
 Fake weight used in the calculation of integration order.


Friends

template<typename T >
class KellyTypeAdapt

template<typename T >
class LinearSolver

template<typename T >
class NewtonSolver

template<typename T >
class PicardSolver

template<typename T >
class RungeKutta


Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::DiscreteProblem< Scalar >

Discrete problem class.

This class does assembling into external matrix / vector structures.

Definition at line 63 of file discrete_problem.h.

Member Function Documentation

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble ( Scalar *  coeff_vec,
SparseMatrix< Scalar > *  mat,
Vector< Scalar > *  rhs = NULL,
bool  force_diagonal_blocks = false,
Table *  block_weights = NULL
)

Assembling. General assembling procedure for nonlinear problems. coeff_vec is the previous Newton vector. If force_diagonal_block == true, then (zero) matrix antries are created in diagonal blocks even if corresponding matrix weak forms do not exist. This is useful if the matrix is later to be merged with a matrix that has nonzeros in these blocks. The Table serves for optional weighting of matrix blocks in systems. The parameter add_dir_lift decides whether Dirichlet lift will be added while coeff_vec is converted into Solutions.

Todo:
Should this be really here? Or in assemble()?

Definition at line 1031 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble ( Scalar *  coeff_vec,
Vector< Scalar > *  rhs = NULL,
bool  force_diagonal_blocks = false,
Table *  block_weights = NULL
)

Assembling. Without the matrix.

Definition at line 1204 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble ( SparseMatrix< Scalar > *  mat,
Vector< Scalar > *  rhs = NULL,
bool  force_diagonal_blocks = false,
Table *  block_weights = NULL
)
virtual

Light version passing NULL for the coefficient vector. External solutions are initialized with zeros.

Reimplemented in Hermes::Hermes2D::DiscreteProblemLinear< Scalar >.

Definition at line 866 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble ( Vector< Scalar > *  rhs = NULL,
bool  force_diagonal_blocks = false,
Table *  block_weights = NULL
)

Light version passing NULL for the coefficient vector. External solutions are initialized with zeros. Without the matrix.

Definition at line 874 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble_one_DG_state ( PrecalcShapeset **  current_pss,
PrecalcShapeset **  current_spss,
RefMap **  current_refmaps,
Solution< Scalar > **  current_u_ext,
AsmList< Scalar > **  current_als,
Traverse::State *  current_state,
Hermes::vector< MatrixFormDG< Scalar > * >  current_mfDG,
Hermes::vector< VectorFormDG< Scalar > * >  current_vfDG,
Transformable **  fn
)
protected

Assemble DG forms.

  • DG *///

Definition at line 2195 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::create_sparse_structure ( )
protected

Preassembling. Precalculate matrix sparse structure. If force_diagonal_block == true, then (zero) matrix antries are created in diagonal blocks even if corresponding matrix weak forms do not exist. This is useful if the matrix is later to be merged with a matrix that has nonzeros in these blocks. The Table serves for optional weighting of matrix blocks in systems.

Todo:
do not get the assembly list again if the element was not changed.

Definition at line 671 of file discrete_problem.cpp.

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::deinit_ext_orders ( Form< Scalar > *  form,
Func< Hermes::Ord > **  oi,
Func< Hermes::Ord > **  oext
)
protected
template<typename Scalar >
NeighborNode * Hermes::Hermes2D::DiscreteProblem< Scalar >::find_node ( unsigned int *  transformations,
unsigned int  transformation_count,
NeighborNode node
)
protected

Finds a node in the multimesh tree that corresponds to the array transformations, with the length of transformation_count, starting to look for it in the NeighborNode node.

Definition at line 2903 of file discrete_problem.cpp.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::update_neighbor_search().

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::init_ext_orders ( Form< Scalar > *  form,
Func< Hermes::Ord > **  oi,
Func< Hermes::Ord > **  oext,
Solution< Scalar > **  current_u_ext,
Traverse::State *  current_state
)
protected
template<typename Scalar >
int Hermes::Hermes2D::DiscreteProblem< Scalar >::init_geometry_points ( RefMap reference_mapping,
int  order,
Geom< double > *&  geometry,
double *&  jacobian_x_weights
)
static

{*, *} Init geometry, jacobian * weights, return the number of integration points.

Definition at line 2079 of file discrete_problem.cpp.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::calculate_cache_records().

template<typename Scalar >
void Hermes::Hermes2D::DiscreteProblem< Scalar >::set_spaces ( Hermes::vector< const Space< Scalar > * >  spaces)
virtual

Sets new spaces for the instance.

Todo:
TEMPORARY There is something wrong with caching vector shapesets.

Implements Hermes::Hermes2D::Mixins::SettableSpaces< Scalar >.

Definition at line 333 of file discrete_problem.cpp.

template<typename Scalar >
bool Hermes::Hermes2D::DiscreteProblem< Scalar >::state_needs_recalculation ( AsmList< Scalar > **  current_als,
Traverse::State *  current_state
)
protected

Assemble one state - needs recalculation?

Returns
if one needs to recalculate, the method calculate_cache_records is called.

Definition at line 1266 of file discrete_problem.cpp.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::assemble_one_state().

template<typename Scalar >
int Hermes::Hermes2D::DiscreteProblem< Scalar >::update_ns_subtree ( NeighborSearch< Scalar > *  ns,
NeighborNode node,
unsigned int  ith_neighbor
)
protected

Updates the NeighborSearch ns according to the subtree of NeighborNode node. Returns 0 if no neighbor was deleted, -1 otherwise.

Definition at line 2930 of file discrete_problem.cpp.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::update_neighbor_search().

Member Data Documentation

template<typename Scalar>
bool Hermes::Hermes2D::DiscreteProblem< Scalar >::have_matrix
protected

Matrix structure can be reused. If other conditions apply.

Definition at line 246 of file discrete_problem.h.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::DiscreteProblem().

template<typename Scalar>
bool Hermes::Hermes2D::DiscreteProblem< Scalar >::is_fvm
protected

If the problem has only constant test functions, there is no need for order calculation, which saves time.

Definition at line 239 of file discrete_problem.h.

Referenced by Hermes::Hermes2D::DiscreteProblem< Scalar >::calc_order_matrix_form(), Hermes::Hermes2D::DiscreteProblem< Scalar >::calc_order_vector_form(), and Hermes::Hermes2D::DiscreteProblem< Scalar >::DiscreteProblem().


The documentation for this class was generated from the following files:
