A general projection-based selector. More...

#include <proj_based_selector.h>

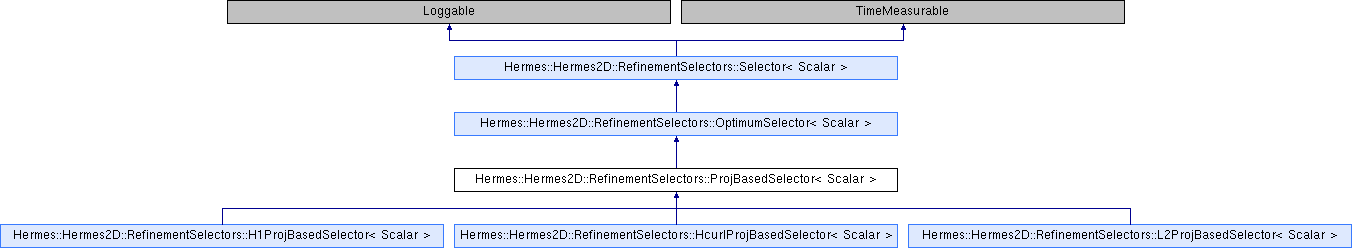

Inheritance diagram for Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >:

Classes
struct	ElemGIP
	Integration points in the reference domain of an element of a candidate. More...

struct	ElemProj
	Projection of an element of a candidate. More...

struct	ElemSubShapeFunc
	A shape function on subdomain of an element. More...

struct	ElemSubTrf
	A transformation from a reference domain of a subdomain to a reference domain of an element of a candidate. More...

class	TrfShapeExp
	A transform shaped function expansions. More...

struct	ValueCacheItem
	An item of a value cache. More...

Public Types
typedef Hermes::vector < TrfShapeExp >	TrfShape [H2D_TRF_NUM]
	Evaluated shapes for all possible transformations for all points. The first index is a transformation, the second index is an index of a shape function.

Public Member Functions
virtual	~ProjBasedSelector ()
	Destructor.

void	set_error_weights (double weight_h=H2DRS_DEFAULT_ERR_WEIGHT_H, double weight_p=H2DRS_DEFAULT_ERR_WEIGHT_P, double weight_aniso=H2DRS_DEFAULT_ERR_WEIGHT_ANISO)
	Sets error weights. More...

double	get_error_weight_h () const

double	get_error_weight_p () const

double	get_error_weight_aniso () const

Public Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
virtual void	set_option (const SelOption option, bool enable)
	Enables or disables an option. More...

const Hermes::vector< Cand > &	get_candidates () const
	Returns a vector of the last generated candidates. More...

virtual	~OptimumSelector ()
	Destructor.

Public Attributes
bool *	cached_shape_vals_valid
	True if shape values were already initialized.

TrfShape *	cached_shape_ortho_vals
	Precalculated valus of orthogonalized shape functions.

TrfShape *	cached_shape_vals
	Precalculate values of shape functions.

Public Attributes inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
int ****	num_shapes

Protected Types
typedef double **	ProjMatrixCache [H2DRS_MAX_ORDER+2][H2DRS_MAX_ORDER+2]
	A projection matrix cache type. More...

Protected Types inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
enum	ShapeType { H2DST_VERTEX = 0x01, H2DST_HORIZ_EDGE = 0x02, H2DST_VERT_EDGE = 0x04, H2DST_TRI_EDGE = 0x08, H2DST_BUBBLE = 0x10 }
	A shape function type. More...

enum	ShapeTypeInt { H2DSI_VERTEX, H2DSI_HORIZ_EDGE, H2DSI_VERT_EDGE, H2DSI_TRI_EDGE, H2DSI_BUBBLE, H2DSI_ANY }

Protected Member Functions
virtual void	precalc_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, TrfShape &svals, ElementMode2D mode)
	Calculates values of shape function at GIP for all transformations. More...

virtual void	precalc_ortho_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, TrfShape &ortho_svals, ElementMode2D mode)
	Calculates values of orthogonalized shape function at GIP for all transformations. More...

	ProjBasedSelector (CandList cand_list, double conv_exp, int max_order, Shapeset *shapeset, const typename OptimumSelector< Scalar >::Range &vertex_order, const typename OptimumSelector< Scalar >::Range &edge_bubble_order)
	Constructor. More...

virtual void	evaluate_cands_error (Element e, Solution< Scalar > rsln, double avg_error, double dev_error)
	Calculates error of candidates. More...

virtual void	calc_projection_errors (Element e, const typename OptimumSelector< Scalar >::CandsInfo &info_h, const typename OptimumSelector< Scalar >::CandsInfo &info_p, const typename OptimumSelector< Scalar >::CandsInfo &info_aniso, Solution< Scalar > rsln, CandElemProjError herr[H2D_MAX_ELEMENT_SONS], CandElemProjError perr, CandElemProjError anisoerr[H2D_MAX_ELEMENT_SONS])
	Calculates projection errors of an elements of candidates for all permutations of orders. More...

void	calc_error_cand_element (const ElementMode2D mode, double3 gip_points, int num_gip_points, const int num_sub, Element sub_domains, Trf sub_trfs, Scalar sub_rvals, Hermes::vector< TrfShapeExp > sub_nonortho_svals, Hermes::vector< TrfShapeExp > **sub_ortho_svals, const typename OptimumSelector< Scalar >::CandsInfo &info, CandElemProjError errors_squared)
	Calculate projection errors of an element of an candidate considering multiple orders. More...

virtual Scalar **	precalc_ref_solution (int inx_son, Solution< Scalar > rsln, Element element, int intr_gip_order)=0
	Returns an array of values of the reference solution at integration points. More...

virtual double **	build_projection_matrix (double3 gip_points, int num_gip_points, const int shape_inx, const int num_shapes, ElementMode2D)=0
	Builds projection matrix using a given set of shapes. More...

virtual Scalar	evaluate_rhs_subdomain (Element *sub_elem, const ElemGIP &sub_gip, const ElemSubTrf &sub_trf, const ElemSubShapeFunc &sub_shape)=0
	Evaluates a value of the right-hande side in a subdomain. More...

virtual double	evaluate_error_squared_subdomain (Element *sub_elem, const ElemGIP &sub_gip, const ElemSubTrf &sub_trf, const ElemProj &elem_proj)=0
	Evaluates an squared error of a projection of an element of a candidate onto subdomains. More...

Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
void	update_cands_info (CandsInfo &info_h, CandsInfo &info_p, CandsInfo &info_aniso) const
	Updates information about candidates. Initial information is provided. More...

void	append_candidates_split (const int start_quad_order, const int last_order, const int split, bool iso_p)
	Appends cancidates of a given refinement and a given range of orders. More...

virtual void	create_candidates (Element *e, int quad_order, int max_ha_quad_order, int max_p_quad_order)
	Fill a list of candidates. More...

void	evaluate_candidates (Element e, Solution< Scalar > rsln, double avg_error, double dev_error)
	Calculates error, dofs, and score of candidates. More...

virtual void	select_best_candidate (Element e, const double avg_error, const double dev_error, int selected_cand, int *selected_h_cand)
	Sorts and selects the best candidate and the best H-candidate according to the score. More...

virtual void	evaluate_cands_dof (Element e, Solution< Scalar > rsln)
	Calculates DOF of candidates. More...

virtual void	evaluate_cands_score (Element *e)
	Evalutes score of candidates. More...

virtual void	set_current_order_range (Element *element)=0
	Sets OptimumSelector::current_max_order and OptimumSelector::current_min_order. More...

void	add_bubble_shape_index (int order_h, int order_v, std::map< int, bool > &used_shape_index, Hermes::vector< ShapeInx > &indices, ElementMode2D mode)
	Adds an index (or indices) of a bubble function of a given order if the shape index was not used yet. More...

void	build_shape_indices (const ElementMode2D mode, const Range &vertex_order, const Range &edge_bubble_order)
	Builds shape index table OptimumSelector::shape_indices. More...

int	calc_num_shapes (int mode, int order_h, int order_v, int allowed_type_mask)
	Returns a number of shapes that may be contained in an element of a given order. More...

	OptimumSelector (CandList cand_list, double conv_exp, int max_order, Shapeset *shapeset, const Range &vertex_order, const Range &edge_bubble_order)
	Constructor. More...

virtual bool	select_refinement (Element element, int quad_order, Solution< Scalar > rsln, ElementToRefine &refinement)
	Selects a refinement. More...

virtual void	generate_shared_mesh_orders (const Element element, const int orig_quad_order, const int refinement, int tgt_quad_orders[H2D_MAX_ELEMENT_SONS], const int suggested_quad_orders)
	Generates orders of elements which will be created due to a proposed refinement in another component that shares the same a mesh. More...

Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >
	Selector (int max_order=H2DRS_DEFAULT_ORDER)
	Constructor. More...

virtual Selector< Scalar > *	clone ()=0
	Cloning for paralelism.

Protected Attributes
bool	warn_uniform_orders
	True if the selector has already warned about possible inefficiency. More...

ProjMatrixCache	proj_matrix_cache [H2D_NUM_MODES]
	An array of projection matrices. More...

Hermes::vector< ValueCacheItem < Scalar > >	nonortho_rhs_cache
	An array of cached right-hand side values. More...

Hermes::vector< ValueCacheItem < Scalar > >	ortho_rhs_cache

double	error_weight_h
	A coefficient that multiplies error of H-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_H.

double	error_weight_p
	A coefficient that multiplies error of P-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_P.

double	error_weight_aniso
	A coefficient that multiplies error of ANISO-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_ANISO.

Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
bool	opt_symmetric_mesh
	True if H2D_PREFER_SYMMETRIC_MESH is set. True by default.

bool	opt_apply_exp_dof
	True if H2D_APPLY_CONV_EXP_DOF is set. False by default.

CandList	cand_list
	Allowed candidate types.

double	conv_exp
	Convergence power. Modifies difference between DOFs before they are used to calculate the score.

Hermes::vector< Cand >	candidates
	A vector of candidates. The first candidate has to be equal to the original element with a refinement ::H2D_REFINEMENT_P.

int	current_max_order
	Current maximum order.

int	current_min_order
	Current minimum order.

Shapeset *	shapeset
	A shapeset used to calculate error.

Hermes::vector< ShapeInx >	shape_indices [H2D_NUM_MODES]
	Shape indices. The first index is a mode (ElementMode2D).

int	max_shape_inx [H2D_NUM_MODES]
	A maximum index of a shape function. The first index is a mode (ElementMode2D).

int	next_order_shape [H2D_NUM_MODES][H2DRS_MAX_ORDER+1]
	An index to the array OptimumSelector::shape_indices of a shape function of the next uniform order. The first index is a mode (ElementMode2D), the second index is an order.

bool	has_vertex_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains vertex functions. The index is a mode (ElementMode2D).

bool	has_edge_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains edge functions. The index is a mode (ElementMode2D).

bool	has_bubble_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains bubble functions. The index is a mode (ElementMode2D).

Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >
const int	max_order

bool	isAClone
	Internal.

Static Protected Attributes
static const int	H2DRS_VALCACHE_INVALID = 0
	State of value cache: item contains undefined or invalid value.

static const int	H2DRS_VALCACHE_VALID = 1
	State of value cache: item contains a valid value.

static const int	H2DRS_VALCACHE_USER = 2
	State of value cache: the first state ID which can be used by the user.

Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >

A general projection-based selector.

Calculates an error of a candidate as a combination of errors of elements of a candidate. Each element of a candidate is calculated separatelly.

Expanding

In order to implement a support for a new space or a new approach to calculation of squared error, implement following methods:

Definition at line 34 of file function.h.

Member Typedef Documentation

template<typename Scalar>

typedef double** Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::ProjMatrixCache[H2DRS_MAX_ORDER+2][H2DRS_MAX_ORDER+2]

protected

A projection matrix cache type.

Defines a cache of projection matrices for all possible permutations of orders.

Definition at line 221 of file proj_based_selector.h.

Constructor & Destructor Documentation

template<typename Scalar >

Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::ProjBasedSelector	(	CandList	cand_list,
		double	conv_exp,
		int	max_order,
		Shapeset *	shapeset,
		const typename OptimumSelector< Scalar >::Range &	vertex_order,
		const typename OptimumSelector< Scalar >::Range &	edge_bubble_order
	)

protected

Constructor.

Intializes attributes, projection matrix cache (ProjBasedSelector::proj_matrix_cache), and allocates rhs cache (ProjBasedSelector::rhs_cache).

Parameters

[in]	cand_list	A predefined list of candidates.
[in]	conv_exp	A conversion exponent, see evaluate_cands_score().
[in]	max_order	A maximum order which considered. If H2DRS_DEFAULT_ORDER, a maximum order supported by the selector is used.
[in]	shapeset	A shapeset. It cannot be NULL.
[in]	vertex_order	A range of orders for vertex functions. Use an empty range (i.e. Range()) to skip vertex functions.
[in]	edge_bubble_order	A range of orders for edge and bubble functions. Use an empty range (i.e. Range()) to skip edge and bubble functions.

Definition at line 17 of file proj_based_selector.cpp.

Member Function Documentation

template<typename Scalar>

virtual double** Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::build_projection_matrix	(	double3 *	gip_points,
		int	num_gip_points,
		const int *	shape_inx,
		const int	num_shapes,
		ElementMode2D
	)

protectedpure virtual

Builds projection matrix using a given set of shapes.

Override to calculate a projection matrix.

Parameters

[in]	gip_points	Integration points. The first index is an index of an integration point, the second index is defined through the enum GIP2DIndices.
[in]	num_gip_points	A number of integration points.
[in]	shape_inx	An array of shape indices.
[in]	num_shapes	A number of shape indices in the array.

Returns: A projection matrix. The matrix has to be allocated trought new_matrix(). The size of the matrix has to be num_shapes x num_shapes.

Implemented in Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >, Hermes::Hermes2D::RefinementSelectors::H1ProjBasedSelector< Scalar >, and Hermes::Hermes2D::RefinementSelectors::L2ProjBasedSelector< Scalar >.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element().

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element	(	const ElementMode2D	mode,
		double3 *	gip_points,
		int	num_gip_points,
		const int	num_sub,
		Element **	sub_domains,
		Trf **	sub_trfs,
		Scalar ***	sub_rvals,
		Hermes::vector< TrfShapeExp > **	sub_nonortho_svals,
		Hermes::vector< TrfShapeExp > **	sub_ortho_svals,
		const typename OptimumSelector< Scalar >::CandsInfo &	info,
		CandElemProjError	errors_squared
	)

protected

Calculate projection errors of an element of an candidate considering multiple orders.

An element of a candidate may span over multiple sub-domains. All integration uses the reference domain.

Modify this method in order to add ortho-adaptivity.

Parameters

[in]	mode	A mode (enum ElementMode2D).
[in]	gip_points	Integration points in the reference domain.
[in]	num_gip_points	A number of integration points.
[in]	num_sub	A number of subdomains.
[in]	sub_domains	Subdomains (elements of a reference mesh) that occupy the element of a candidate. The first index is an index of the subdomain.
[in]	sub_trfs	Transformation from a reference domain of a subdomain to a reference domain of the element of a candidate. The first index is an index of the subdomain.
[in]	sub_rvals	Values at integration points for every subdomain. Contents of this array (the second index) is defined by the method precalc_ref_solution(). The first index is an index of the subdomain.
[in]	sub_nonortho_svals
[in]	sub_ortho_svals
[in]	info	Information about candidates: range of orders, etc.
[out]	errors_squared	Calculated squared errors for all orders specified through info.

Definition at line 428 of file proj_based_selector.cpp.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors().

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors	(	Element *	e,
		const typename OptimumSelector< Scalar >::CandsInfo &	info_h,
		const typename OptimumSelector< Scalar >::CandsInfo &	info_p,
		const typename OptimumSelector< Scalar >::CandsInfo &	info_aniso,
		Solution< Scalar > *	rsln,
		CandElemProjError	herr[H2D_MAX_ELEMENT_SONS],
		CandElemProjError	perr,
		CandElemProjError	anisoerr[H2D_MAX_ELEMENT_SONS]
	)

protectedvirtual

Calculates projection errors of an elements of candidates for all permutations of orders.

Errors are not normalized and they are squared. The range of orders is defined through parameters info_h, info_h, and info_aniso.

If defining a new evalution (e.g. using a difference space) of errors, follows instructions in Expanding.

Parameters

[in]	e	An element that is being examined by the selector.
[in]	info_h	Information about H-candidates: range of orders, etc.
[in]	info_p	Information about P-candidates: range of orders, etc.
[in]	info_aniso	Information about ANISO-candidates: range of orders, etc.
[in]	rsln	A reference solution.
[out]	herr	An error of elements of H-candidates of various permutation of orders.
[out]	perr	An error of elements of P-candidates of various permutation of orders.
[out]	anisoerr	An error of elements of ANISO-candidates of various permutation of orders.

Definition at line 233 of file proj_based_selector.cpp.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::evaluate_cands_error().

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::evaluate_cands_error	(	Element *	e,
		Solution< Scalar > *	rsln,
		double *	avg_error,
		double *	dev_error
	)

protectedvirtual

Calculates error of candidates.

Overriden function. For details, see OptimumSelector::evaluate_cands_error().

Implements Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >.

Definition at line 126 of file proj_based_selector.cpp.

template<typename Scalar>

virtual double Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::evaluate_error_squared_subdomain	(	Element *	sub_elem,
		const ElemGIP &	sub_gip,
		const ElemSubTrf &	sub_trf,
		const ElemProj &	elem_proj
	)

protectedpure virtual

Evaluates an squared error of a projection of an element of a candidate onto subdomains.

Override to calculate an error using a provided projection and subdomains.

Parameters

[in]	sub_elem	An element of a reference mesh that corresponds to a subdomain.
[in]	sub_gip	Integration points. Locations of integration points are defined in the reference domain. Use sub_trf to transform it to the reference domain of an element of a candidate.
[in]	sub_trf	A transformation from a reference domain of a subdomain to the reference domain of an element of a candidate.
[in]	elem_proj	A projection of an element of a candidate on subdomains.

Returns: A squared error of an element of a candidate.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element().

template<typename Scalar>

virtual Scalar Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::evaluate_rhs_subdomain	(	Element *	sub_elem,
		const ElemGIP &	sub_gip,
		const ElemSubTrf &	sub_trf,
		const ElemSubShapeFunc &	sub_shape
	)

protectedpure virtual

Evaluates a value of the right-hande side in a subdomain.

Override to calculate a value of the right-hand side.

Parameters

[in]	sub_elem	An element of a reference mesh that corresponds to a subdomain.
[in]	sub_gip	Integration points. Locations of integration points are defined in the reference domain. Use sub_trf to transform it to the reference domain of an element of a candidate.
[in]	sub_trf	A transformation from a reference domain of a subdomain to the reference domain of an element of a candidate.
[in]	sub_shape	Information about a shape function: shape index and calculated expansions at integration points, if any.

Returns: A value of the righ-hand size of a given shape function.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element().

template<typename Scalar>

virtual void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::precalc_ortho_shapes	(	const double3 *	gip_points,
		const int	num_gip_points,
		const Trf *	trfs,
		const int	num_noni_trfs,
		const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &	shapes,
		const int	max_shape_inx,
		TrfShape &	ortho_svals,
		ElementMode2D	mode
	)

inlineprotectedvirtual

Calculates values of orthogonalized shape function at GIP for all transformations.

Override this method to supply a pre-calculated vales of orthonormalized shape function expansions at integration points. If override, the method has to supply precalculate expansions for all transformations plus an identity transformation. An index of the identity transformation is ::H2D_TRF_IDENTITY.

If overridden and if this method orthonormalizes shape functions at the integration points, it is suggested to use the method precalc_shapes() in order to obtain initial values of shape functions at integration points.

Parameters

[in]	gip_points	Integration points. The first index is an index of an integration point, the second index is an element of the enum GIP2DIndices.
[in]	num_gip_points	A number of integration points.
[in]	trfs	A transformations. The array has ::H2D_TRF_NUM elements. The index of the identity transformation is ::H2D_TRF_IDENTITY.
[in]	num_noni_trfs	A number of transformations which are not identity. This number might be lower than than ::H2D_TRF_NUM.
[in]	shapes	Shape functions.
[in]	max_shape_inx	A maximum index of a shape function. This is used to resize a sub-array of the array svals.
[out]	svals	A precalculated values of shape functions. The user has to resize the array of shape functions for every used transformation including the identity to the a size defined by max_shape_inx. The system will assume that shape functions are precalculated if the array corresponding to the identity function is not empty.

Definition at line 165 of file proj_based_selector.h.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors().

template<typename Scalar>

virtual Scalar** Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::precalc_ref_solution	(	int	inx_son,
		Solution< Scalar > *	rsln,
		Element *	element,
		int	intr_gip_order
	)

protectedpure virtual

Returns an array of values of the reference solution at integration points.

The method have to set an active element and an quadrature on its own.

Override to provide all necessary values. Provided pointers should stay valid through an execution of the method calc_projection_errors(). Since an explicit deallocation of these pointers is not done, it is suggested to provide pointers to attributes of the class rather than to dynamically allocate an array. The method can assume that the an element is refined into H2D_MAX_ELEMENT_SONS elements (sons) in the reference mesh.

Parameters

[in]	inx_son	An index of a son of an element, i.e., an index of a subdomain. The index is in a range[0, H2D_MAX_ELEMENT_SONS - 1].
[in]	rsln	A reference solution.
[in]	element	An element of the coarse solution. An element of both the same geometry and the same ID have to be present in the mesh of the reference solution.
[in]	intr_gip_order	An order of quadrature integration. The number of quadrature points should be retrieved through a quadrature stored in the paremeter rsln.

Returns: A pointer to 2D array. The first index is an index of the function expansion (f, df/dx, ...), the second index is an index of the integration point.

Implemented in Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >, Hermes::Hermes2D::RefinementSelectors::H1ProjBasedSelector< Scalar >, and Hermes::Hermes2D::RefinementSelectors::L2ProjBasedSelector< Scalar >.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors().

template<typename Scalar>

virtual void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::precalc_shapes	(	const double3 *	gip_points,
		const int	num_gip_points,
		const Trf *	trfs,
		const int	num_noni_trfs,
		const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &	shapes,
		const int	max_shape_inx,
		TrfShape &	svals,
		ElementMode2D	mode
	)

inlineprotectedvirtual

Calculates values of shape function at GIP for all transformations.

Override this method to supply a pre-calculated vales of shape function expansions at integration points. If override, the method has to supply precalculate expansions for all transformations plus an identity transformation. An index of the identity transformation is ::H2D_TRF_IDENTITY.

Parameters

[in]	gip_points	Integration points. The first index is an index of an integration point, the second index is an element of the enum GIP2DIndices.
[in]	num_gip_points	A number of integration points.
[in]	trfs	A transformations. The array has ::H2D_TRF_NUM elements. The index of the identity transformation is ::H2D_TRF_IDENTITY.
[in]	num_noni_trfs	A number of transformations which are not identity. This number might be lower than than ::H2D_TRF_NUM.
[in]	shapes	Shape functions.
[in]	max_shape_inx	A maximum index of a shape function. This is used to resize a sub-array of the array svals.
[out]	svals	A precalculated values of shape functions. The user has to resize the array of shape functions for every used transformation including the identity to the a size defined by max_shape_inx. The system will assume that shape functions are precalculated if the array corresponding to the identity function is not empty.

Definition at line 145 of file proj_based_selector.h.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors().

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::set_error_weights	(	double	weight_h = `H2DRS_DEFAULT_ERR_WEIGHT_H`,
		double	weight_p = `H2DRS_DEFAULT_ERR_WEIGHT_P`,
		double	weight_aniso = `H2DRS_DEFAULT_ERR_WEIGHT_ANISO`
	)

Sets error weights.

An error weight is a multiplicative coefficient that modifies an error of candidate. Error weights can be used to proritize refinements. Error weights are applied in the method evaluate_cands_error().

Parameters

[in]	weight_h	An error weight of H-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_H.
[in]	weight_p	An error weight of P-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_P.
[in]	weight_aniso	An error weight of ANISO-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_ANISO.

Definition at line 70 of file proj_based_selector.cpp.

Referenced by Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::clone(), Hermes::Hermes2D::RefinementSelectors::L2ProjBasedSelector< Scalar >::clone(), and Hermes::Hermes2D::RefinementSelectors::H1ProjBasedSelector< Scalar >::clone().

Member Data Documentation

template<typename Scalar>

Hermes::vector< ValueCacheItem<Scalar> > Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::nonortho_rhs_cache

protected

An array of cached right-hand side values.

The first index is an index of the shape function.

Contents of the array is valid in the method calc_error_cand_element(). The array is allocated in the constructor, the size of the array is equal to the maximum index of a shape function + 1.

Note: It is kept here in order to avoid frequent reallocating.

Definition at line 237 of file proj_based_selector.h.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element(), and Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::ProjBasedSelector().

template<typename Scalar>

ProjMatrixCache Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::proj_matrix_cache[H2D_NUM_MODES]

protected

An array of projection matrices.

The first index is the mode (see the enum ElementMode2D). The second and the third index is the horizontal and the vertical order respectively.

All matrices are square dense matrices and they have to be created through the function new_matrix(). If record is NULL, the corresponding matrix has to be calculated.

Definition at line 229 of file proj_based_selector.h.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_error_cand_element(), and Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::ProjBasedSelector().

template<typename Scalar>

bool Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::warn_uniform_orders

protected

True if the selector has already warned about possible inefficiency.

If OptimumSelector::cand_list does not generate candidates with elements of non-uniform orders and if the precalculate orthonormal base is available, the user should not use non-uniform order in the meshed in order to gain efficiency.

Definition at line 184 of file proj_based_selector.h.

Referenced by Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >::calc_projection_errors().

The documentation for this class was generated from the following files:

Classes

Public Types

Public Member Functions

Public Attributes

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Detailed Description

template<typename Scalar> class Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >

Expanding

Member Typedef Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename Scalar>
class Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
