A projection-based selector for Hcurl space. More...

#include <hcurl_proj_based_selector.h>

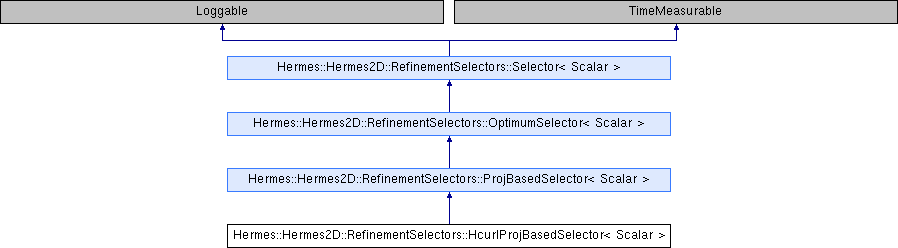

Inheritance diagram for Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >:

Public Member Functions
	HcurlProjBasedSelector (CandList cand_list=H2D_HP_ANISO, double conv_exp=1.0, int max_order=H2DRS_DEFAULT_ORDER, HcurlShapeset *user_shapeset=NULL)
	Constructor. More...

virtual Selector< Scalar > *	clone ()
	Cloning for paralelism.

virtual	~HcurlProjBasedSelector ()
	Destructor.

Public Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
virtual	~ProjBasedSelector ()
	Destructor.

void	set_error_weights (double weight_h=H2DRS_DEFAULT_ERR_WEIGHT_H, double weight_p=H2DRS_DEFAULT_ERR_WEIGHT_P, double weight_aniso=H2DRS_DEFAULT_ERR_WEIGHT_ANISO)
	Sets error weights. More...

double	get_error_weight_h () const

double	get_error_weight_p () const

double	get_error_weight_aniso () const

Public Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
virtual void	set_option (const SelOption option, bool enable)
	Enables or disables an option. More...

const Hermes::vector< Cand > &	get_candidates () const
	Returns a vector of the last generated candidates. More...

virtual	~OptimumSelector ()
	Destructor.

Protected Types
enum	LocalFuncExpansion { H2D_HCFE_VALUE0 = 0, H2D_HCFE_VALUE1 = 1, H2D_HCFE_CURL = 2, H2D_HCFE_NUM = 3 }
	A function expansion of a function f used by this selector. More...

Protected Types inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
typedef double **	ProjMatrixCache [H2DRS_MAX_ORDER+2][H2DRS_MAX_ORDER+2]
	A projection matrix cache type. More...

Protected Types inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
enum	ShapeType { H2DST_VERTEX = 0x01, H2DST_HORIZ_EDGE = 0x02, H2DST_VERT_EDGE = 0x04, H2DST_TRI_EDGE = 0x08, H2DST_BUBBLE = 0x10 }
	A shape function type. More...

enum	ShapeTypeInt { H2DSI_VERTEX, H2DSI_HORIZ_EDGE, H2DSI_VERT_EDGE, H2DSI_TRI_EDGE, H2DSI_BUBBLE, H2DSI_ANY }

Protected Member Functions
virtual void	set_current_order_range (Element *element)
	Sets OptimumSelector::current_max_order and OptimumSelector::current_min_order. More...

virtual Scalar **	precalc_ref_solution (int inx_son, Solution< Scalar > rsln, Element element, int intr_gip_order)
	Returns an array of values of the reference solution at integration points. More...

virtual void	precalc_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, typename ProjBasedSelector< Scalar >::TrfShape &svals, ElementMode2D mode)
	Calculates values of shape function at GIP for all transformations. More...

virtual void	precalc_ortho_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, typename ProjBasedSelector< Scalar >::TrfShape &svals, ElementMode2D mode)
	Calculates values of orthogonalized shape function at GIP for all transformations. More...

virtual double **	build_projection_matrix (double3 gip_points, int num_gip_points, const int shape_inx, const int num_shapes, ElementMode2D mode)
	Builds projection matrix using a given set of shapes. More...

virtual Scalar	evaluate_rhs_subdomain (Element *sub_elem, const typename ProjBasedSelector< Scalar >::ElemGIP &sub_gip, const typename ProjBasedSelector< Scalar >::ElemSubTrf &sub_trf, const typename ProjBasedSelector< Scalar >::ElemSubShapeFunc &sub_shape)
	Evaluates a value of the right-hande side in a subdomain. More...

virtual double	evaluate_error_squared_subdomain (Element *sub_elem, const typename ProjBasedSelector< Scalar >::ElemGIP &sub_gip, const typename ProjBasedSelector< Scalar >::ElemSubTrf &sub_trf, const typename ProjBasedSelector< Scalar >::ElemProj &elem_proj)
	Evaluates an squared error of a projection of an element of a candidate onto subdomains. More...

Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
virtual void	precalc_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, TrfShape &svals, ElementMode2D mode)
	Calculates values of shape function at GIP for all transformations. More...

virtual void	precalc_ortho_shapes (const double3 gip_points, const int num_gip_points, const Trf trfs, const int num_noni_trfs, const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &shapes, const int max_shape_inx, TrfShape &ortho_svals, ElementMode2D mode)
	Calculates values of orthogonalized shape function at GIP for all transformations. More...

	ProjBasedSelector (CandList cand_list, double conv_exp, int max_order, Shapeset *shapeset, const typename OptimumSelector< Scalar >::Range &vertex_order, const typename OptimumSelector< Scalar >::Range &edge_bubble_order)
	Constructor. More...

virtual void	evaluate_cands_error (Element e, Solution< Scalar > rsln, double avg_error, double dev_error)
	Calculates error of candidates. More...

virtual void	calc_projection_errors (Element e, const typename OptimumSelector< Scalar >::CandsInfo &info_h, const typename OptimumSelector< Scalar >::CandsInfo &info_p, const typename OptimumSelector< Scalar >::CandsInfo &info_aniso, Solution< Scalar > rsln, CandElemProjError herr[H2D_MAX_ELEMENT_SONS], CandElemProjError perr, CandElemProjError anisoerr[H2D_MAX_ELEMENT_SONS])
	Calculates projection errors of an elements of candidates for all permutations of orders. More...

void	calc_error_cand_element (const ElementMode2D mode, double3 gip_points, int num_gip_points, const int num_sub, Element sub_domains, Trf sub_trfs, Scalar sub_rvals, Hermes::vector< TrfShapeExp > sub_nonortho_svals, Hermes::vector< TrfShapeExp > **sub_ortho_svals, const typename OptimumSelector< Scalar >::CandsInfo &info, CandElemProjError errors_squared)
	Calculate projection errors of an element of an candidate considering multiple orders. More...

virtual Scalar	evaluate_rhs_subdomain (Element *sub_elem, const ElemGIP &sub_gip, const ElemSubTrf &sub_trf, const ElemSubShapeFunc &sub_shape)=0
	Evaluates a value of the right-hande side in a subdomain. More...

virtual double	evaluate_error_squared_subdomain (Element *sub_elem, const ElemGIP &sub_gip, const ElemSubTrf &sub_trf, const ElemProj &elem_proj)=0
	Evaluates an squared error of a projection of an element of a candidate onto subdomains. More...

Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
void	update_cands_info (CandsInfo &info_h, CandsInfo &info_p, CandsInfo &info_aniso) const
	Updates information about candidates. Initial information is provided. More...

void	append_candidates_split (const int start_quad_order, const int last_order, const int split, bool iso_p)
	Appends cancidates of a given refinement and a given range of orders. More...

virtual void	create_candidates (Element *e, int quad_order, int max_ha_quad_order, int max_p_quad_order)
	Fill a list of candidates. More...

void	evaluate_candidates (Element e, Solution< Scalar > rsln, double avg_error, double dev_error)
	Calculates error, dofs, and score of candidates. More...

virtual void	select_best_candidate (Element e, const double avg_error, const double dev_error, int selected_cand, int *selected_h_cand)
	Sorts and selects the best candidate and the best H-candidate according to the score. More...

virtual void	evaluate_cands_dof (Element e, Solution< Scalar > rsln)
	Calculates DOF of candidates. More...

virtual void	evaluate_cands_score (Element *e)
	Evalutes score of candidates. More...

void	add_bubble_shape_index (int order_h, int order_v, std::map< int, bool > &used_shape_index, Hermes::vector< ShapeInx > &indices, ElementMode2D mode)
	Adds an index (or indices) of a bubble function of a given order if the shape index was not used yet. More...

void	build_shape_indices (const ElementMode2D mode, const Range &vertex_order, const Range &edge_bubble_order)
	Builds shape index table OptimumSelector::shape_indices. More...

int	calc_num_shapes (int mode, int order_h, int order_v, int allowed_type_mask)
	Returns a number of shapes that may be contained in an element of a given order. More...

	OptimumSelector (CandList cand_list, double conv_exp, int max_order, Shapeset *shapeset, const Range &vertex_order, const Range &edge_bubble_order)
	Constructor. More...

virtual bool	select_refinement (Element element, int quad_order, Solution< Scalar > rsln, ElementToRefine &refinement)
	Selects a refinement. More...

virtual void	generate_shared_mesh_orders (const Element element, const int orig_quad_order, const int refinement, int tgt_quad_orders[H2D_MAX_ELEMENT_SONS], const int suggested_quad_orders)
	Generates orders of elements which will be created due to a proposed refinement in another component that shares the same a mesh. More...

Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >
	Selector (int max_order=H2DRS_DEFAULT_ORDER)
	Constructor. More...

Protected Attributes
Scalar *	precalc_rvals [H2D_MAX_ELEMENT_SONS][H2D_HCFE_NUM]
	Array of arrays of precalculates. The first index is an index of a subdomain, the second index is an index of a function expansion (see enum LocalFuncExpansion).

Scalar **	precalc_rvals_curl
	Pre-calculated values of curls for every subdomain. Allocated using new_matrix.

Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
bool	warn_uniform_orders
	True if the selector has already warned about possible inefficiency. More...

ProjMatrixCache	proj_matrix_cache [H2D_NUM_MODES]
	An array of projection matrices. More...

Hermes::vector< ValueCacheItem < Scalar > >	nonortho_rhs_cache
	An array of cached right-hand side values. More...

Hermes::vector< ValueCacheItem < Scalar > >	ortho_rhs_cache

double	error_weight_h
	A coefficient that multiplies error of H-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_H.

double	error_weight_p
	A coefficient that multiplies error of P-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_P.

double	error_weight_aniso
	A coefficient that multiplies error of ANISO-candidate. The default value is H2DRS_DEFAULT_ERR_WEIGHT_ANISO.

Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >
bool	opt_symmetric_mesh
	True if H2D_PREFER_SYMMETRIC_MESH is set. True by default.

bool	opt_apply_exp_dof
	True if H2D_APPLY_CONV_EXP_DOF is set. False by default.

CandList	cand_list
	Allowed candidate types.

double	conv_exp
	Convergence power. Modifies difference between DOFs before they are used to calculate the score.

Hermes::vector< Cand >	candidates
	A vector of candidates. The first candidate has to be equal to the original element with a refinement ::H2D_REFINEMENT_P.

int	current_max_order
	Current maximum order.

int	current_min_order
	Current minimum order.

Shapeset *	shapeset
	A shapeset used to calculate error.

Hermes::vector< ShapeInx >	shape_indices [H2D_NUM_MODES]
	Shape indices. The first index is a mode (ElementMode2D).

int	max_shape_inx [H2D_NUM_MODES]
	A maximum index of a shape function. The first index is a mode (ElementMode2D).

int	next_order_shape [H2D_NUM_MODES][H2DRS_MAX_ORDER+1]
	An index to the array OptimumSelector::shape_indices of a shape function of the next uniform order. The first index is a mode (ElementMode2D), the second index is an order.

bool	has_vertex_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains vertex functions. The index is a mode (ElementMode2D).

bool	has_edge_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains edge functions. The index is a mode (ElementMode2D).

bool	has_bubble_shape [H2D_NUM_MODES]
	True if the shapeset OptimumSelector::shapeset contains bubble functions. The index is a mode (ElementMode2D).

Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >
const int	max_order

bool	isAClone
	Internal.

Static Protected Attributes
static const int	H2DRS_MAX_HCURL_ORDER = 6
	A maximum used order in this Hcurl-space selector. More...

Static Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
static const int	H2DRS_VALCACHE_INVALID = 0
	State of value cache: item contains undefined or invalid value.

static const int	H2DRS_VALCACHE_VALID = 1
	State of value cache: item contains a valid value.

static const int	H2DRS_VALCACHE_USER = 2
	State of value cache: the first state ID which can be used by the user.

Additional Inherited Members
Public Types inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
typedef Hermes::vector < TrfShapeExp >	TrfShape [H2D_TRF_NUM]
	Evaluated shapes for all possible transformations for all points. The first index is a transformation, the second index is an index of a shape function.

Public Attributes inherited from Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >
bool *	cached_shape_vals_valid
	True if shape values were already initialized.

TrfShape *	cached_shape_ortho_vals
	Precalculated valus of orthogonalized shape functions.

TrfShape *	cached_shape_vals
	Precalculate values of shape functions.

Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >

A projection-based selector for Hcurl space.

This class is designed to be used with the class HcurlAdapt. Since an initialization of the class may take a long time, it is suggested to create the instance outside the adaptivity loop.

Definition at line 37 of file function.h.

Member Enumeration Documentation

template<typename Scalar >

enum Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector::LocalFuncExpansion

protected

A function expansion of a function f used by this selector.

Enumerator
H2D_HCFE_VALUE0	A function expansion: f_0.
H2D_HCFE_VALUE1	A function expansion: f_1.
H2D_HCFE_CURL	A function expansion: curl = df_1/dx - df_0/dy.
H2D_HCFE_NUM	A total considered function expansion.

Definition at line 49 of file hcurl_proj_based_selector.h.

Constructor & Destructor Documentation

template<typename Scalar >

Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::HcurlProjBasedSelector	(	CandList	cand_list = `H2D_HP_ANISO`,
		double	conv_exp = `1.0`,
		int	max_order = `H2DRS_DEFAULT_ORDER`,
		HcurlShapeset *	user_shapeset = `NULL`
	)

Constructor.

Parameters

[in]	cand_list	A predefined list of candidates.
[in]	conv_exp	A conversion exponent, see evaluate_cands_score().
[in]	max_order	A maximum order which considered. If H2DRS_DEFAULT_ORDER, a maximum order supported by the selector is used, see HcurlProjBasedSelector::H2DRS_MAX_HCURL_ORDER.
[in]	user_shapeset	A shapeset. If NULL, it will use internal instance of the class HcurlShapeset.

Definition at line 17 of file hcurl_proj_based_selector.cpp.

Member Function Documentation

template<typename Scalar >

double ** Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::build_projection_matrix	(	double3 *	gip_points,
		int	num_gip_points,
		const int *	shape_inx,
		const int	num_shapes,
		ElementMode2D	mode
	)

protectedvirtual

Builds projection matrix using a given set of shapes.

Overriden function. For details, see ProjBasedSelector::build_projection_matrix().

Implements Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >.

Definition at line 231 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

double Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::evaluate_error_squared_subdomain	(	Element *	sub_elem,
		const typename ProjBasedSelector< Scalar >::ElemGIP &	sub_gip,
		const typename ProjBasedSelector< Scalar >::ElemSubTrf &	sub_trf,
		const typename ProjBasedSelector< Scalar >::ElemProj &	elem_proj
	)

protectedvirtual

Evaluates an squared error of a projection of an element of a candidate onto subdomains.

Overriden function. For details, see ProjBasedSelector::evaluate_error_squared_subdomain().

Definition at line 312 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

Scalar Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::evaluate_rhs_subdomain	(	Element *	sub_elem,
		const typename ProjBasedSelector< Scalar >::ElemGIP &	sub_gip,
		const typename ProjBasedSelector< Scalar >::ElemSubTrf &	sub_trf,
		const typename ProjBasedSelector< Scalar >::ElemSubShapeFunc &	sub_shape
	)

protectedvirtual

Evaluates a value of the right-hande side in a subdomain.

Overriden function. For details, see ProjBasedSelector::evaluate_rhs_subdomain().

Definition at line 271 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::precalc_ortho_shapes	(	const double3 *	gip_points,
		const int	num_gip_points,
		const Trf *	trfs,
		const int	num_noni_trfs,
		const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &	shapes,
		const int	max_shape_inx,
		typename ProjBasedSelector< Scalar >::TrfShape &	svals,
		ElementMode2D	mode
	)

protectedvirtual

Calculates values of orthogonalized shape function at GIP for all transformations.

Overriden function. For details, see ProjBasedSelector::precalc_ortho_shapes().

Definition at line 108 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

Scalar ** Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::precalc_ref_solution	(	int	inx_son,
		Solution< Scalar > *	rsln,
		Element *	element,
		int	intr_gip_order
	)

protectedvirtual

Returns an array of values of the reference solution at integration points.

Overriden function. For details, see ProjBasedSelector::precalc_ref_solution().

Implements Hermes::Hermes2D::RefinementSelectors::ProjBasedSelector< Scalar >.

Definition at line 206 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::precalc_shapes	(	const double3 *	gip_points,
		const int	num_gip_points,
		const Trf *	trfs,
		const int	num_noni_trfs,
		const Hermes::vector< typename OptimumSelector< Scalar >::ShapeInx > &	shapes,
		const int	max_shape_inx,
		typename ProjBasedSelector< Scalar >::TrfShape &	svals,
		ElementMode2D	mode
	)

protectedvirtual

Calculates values of shape function at GIP for all transformations.

Overriden function. For details, see ProjBasedSelector::precalc_shapes().

Definition at line 55 of file hcurl_proj_based_selector.cpp.

template<typename Scalar >

void Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::set_current_order_range ( Element * element )

protectedvirtual

Sets OptimumSelector::current_max_order and OptimumSelector::current_min_order.

The default order range is[1, ::H2DRS_MAX_HCURL_ORDER]. If curved, the upper boundary of the range becomes lower. Overriden function. For details, see OptimumSelector::set_current_order_range().

Implements Hermes::Hermes2D::RefinementSelectors::OptimumSelector< Scalar >.

Definition at line 44 of file hcurl_proj_based_selector.cpp.

Member Data Documentation

template<typename Scalar >

const int Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >::H2DRS_MAX_HCURL_ORDER = 6

staticprotected

A maximum used order in this Hcurl-space selector.

Todo:: Replace the numerical constant after a symbolic constant is added to Hcurl shapeset which would declare the maximum supported order.

Definition at line 59 of file hcurl_proj_based_selector.h.

The documentation for this class was generated from the following files:

Public Member Functions

Protected Types

Protected Member Functions

Protected Attributes

Static Protected Attributes

Additional Inherited Members

Detailed Description

template<typename Scalar> class Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >

Member Enumeration Documentation

Constructor & Destructor Documentation

Member Function Documentation

Member Data Documentation

template<typename Scalar>
class Hermes::Hermes2D::RefinementSelectors::HcurlProjBasedSelector< Scalar >
