#include <space_h1.h>

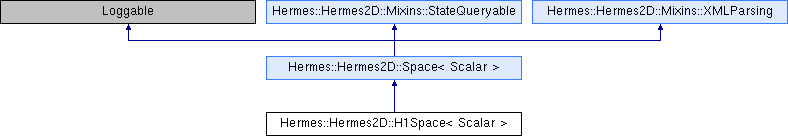

Inheritance diagram for Hermes::Hermes2D::H1Space< Scalar >:

Classes
struct	EdgeInfo

struct	FixedVertex

Public Member Functions
	H1Space (const Mesh mesh, EssentialBCs< Scalar > boundary_conditions, int p_init=1, Shapeset *shapeset=NULL)

	H1Space (const Mesh mesh, int p_init=1, Shapeset shapeset=NULL)

virtual void	set_shapeset (Shapeset *shapeset)
	Sets the shapeset.

void	fix_vertex (int id, Scalar value=0.0)

virtual Scalar *	get_bc_projection (SurfPos surf_pos, int order, EssentialBoundaryCondition< Scalar > bc)

virtual void	copy (const Space< Scalar > space, Mesh new_mesh)
	Copy from Space instance 'space'.

Public Member Functions inherited from Hermes::Hermes2D::Space< Scalar >
	Space (const Mesh mesh, Shapeset shapeset, EssentialBCs< Scalar > *essential_bcs)

void	init ()
	Common code for constructors.

virtual bool	isOkay () const
	State querying helpers.

std::string	getClassName () const
	Get class name, for the purpose of messaging.

virtual	~Space ()
	Destructor.

virtual void	set_element_order (int id, int order)

virtual void	set_element_orders (int *elem_orders)
	Sets polynomial order to all elements.

int	get_element_order (int id) const
	Returns element polynomial order.

void	set_uniform_order (int order, std::string marker=HERMES_ANY)

void	adjust_element_order (int order_change, int min_order)

void	adjust_element_order (int horizontal_order_change, int vertical_order_change, unsigned int horizontal_min_order, unsigned int vertical_min_order)
	Version for quads.

void	unrefine_all_mesh_elements (bool keep_initial_refinements=true)

void	update_element_orders_after_refinement ()
	Updates element orders when the underlying mesh has been refined.

int	get_num_dofs () const
	Returns the number of basis functions contained in the space.

Mesh *	get_mesh () const

void	set_mesh (Mesh *mesh)
	Sets a (new) mesh and calls assign_dofs().

void	set_mesh_seq (int seq)
	Sets a (new) mesh seq, and mesh_seq.

void	set_essential_bcs (EssentialBCs< Scalar > *essential_bcs)
	Sets the boundary condition.

EssentialBCs< Scalar > *	get_essential_bcs () const
	Obtains an boundary conditions.

void	update_essential_bc_values ()

Shapeset *	get_shapeset () const

bool	save (const char *filename) const
	Saves this space into a file.

virtual void	get_element_assembly_list (Element e, AsmList< Scalar > al, unsigned int first_dof=0) const
	Obtains an assembly list for the given element.

virtual void	set_element_order_internal (int id, int order)

virtual int	assign_dofs (int first_dof=0, int stride=1)
	Builds basis functions and assigns DOF numbers to them. More...

void	distribute_orders (Mesh mesh, int parents)
	Sets polynomial orders to elements created by Mesh::regularize() using "parents".

virtual int	get_edge_order (Element *e, int edge) const
	Internal. Obtains the order of an edge, according to the minimum rule.

int	get_max_dof () const
	Returns the DOF number of the last basis function.

bool	is_up_to_date () const
	Returns true if the space is ready for computation, false otherwise.

void	get_boundary_assembly_list (Element e, int surf_num, AsmList< Scalar > al, unsigned int first_dof=0) const
	Obtains an edge assembly list (contains shape functions that are nonzero on the specified edge).

void	set_uniform_order_internal (int order, int marker)

void	free ()

int	get_vertex_functions_count ()

int	get_edge_functions_count ()
	Returns the total (global) number of edge functions.

int	get_bubble_functions_count ()
	Returns the total (global) number of bubble functions.

template<>
void	init ()

template<>
void	init ()

template<>
void	free ()

template<>
void	free ()

template<>
	Space (const Mesh mesh, Shapeset shapeset, EssentialBCs< double > *essential_bcs)

template<>
	Space (const Mesh mesh, Shapeset shapeset, EssentialBCs< std::complex< double > > *essential_bcs)

Public Member Functions inherited from Hermes::Hermes2D::Mixins::StateQueryable
void	check () const
	Method to handle the state.

Public Member Functions inherited from Hermes::Hermes2D::Mixins::XMLParsing
	XMLParsing ()
	Constructor.

void	set_validation (bool to_set)
	Set to validate / not to validate.

Protected Member Functions
virtual SpaceType	get_type () const

void	init (Shapeset *shapeset, int p_init)
	Common code for the constructors.

virtual void	assign_vertex_dofs ()

virtual void	assign_edge_dofs ()

virtual void	assign_bubble_dofs ()

virtual void	get_vertex_assembly_list (Element e, int iv, AsmList< Scalar > al) const

virtual void	get_boundary_assembly_list_internal (Element e, int ie, AsmList< Scalar > al) const

void	output_component (typename Space< Scalar >::BaseComponent &current, typename Space< Scalar >::BaseComponent &last, typename Space< Scalar >::BaseComponent min, Node &edge, typename Space< Scalar >::BaseComponent *&edge_dofs)

Space< Scalar >::BaseComponent *	merge_baselists (typename Space< Scalar >::BaseComponent l1, int n1, typename Space< Scalar >::BaseComponent l2, int n2, Node edge, typename Space< Scalar >::BaseComponent &edge_dofs, int &ncomponents)

void	update_constrained_nodes (Element e, EdgeInfo ei0, EdgeInfo ei1, EdgeInfo ei2, EdgeInfo *ei3)

virtual void	update_constraints ()

bool	is_fixed_vertex (int id) const

virtual void	post_assign ()

Protected Member Functions inherited from Hermes::Hermes2D::Space< Scalar >
virtual int	get_edge_order_internal (Node *en) const

virtual void	resize_tables ()
	Updates internal node and element tables. More...

void	update_orders_recurrent (Element *e, int order)

virtual void	reset_dof_assignment ()
	Resets assignment of DOF to an unassigned state.

virtual void	get_bubble_assembly_list (Element e, AsmList< Scalar > al) const

void	precalculate_projection_matrix (int nv, double *&mat, double &p)

void	update_edge_bc (Element e, SurfPos surf_pos)

void	free_bc_data ()

int	get_seq () const
	Internal. Used by DiscreteProblem to detect changes in the space.

Protected Attributes
Hermes::vector< FixedVertex >	fixed_vertices

Protected Attributes inherited from Hermes::Hermes2D::Space< Scalar >
int	ndof
	Number of degrees of freedom (dimension of the space).

Shapeset *	shapeset

bool	own_shapeset
	true if default shapeset is created in the constructor, false if shapeset is supplied by user.

EssentialBCs< Scalar > *	essential_bcs
	Boundary conditions.

const Mesh *	mesh
	FE mesh.

int	default_tri_order

int	default_quad_order

int	vertex_functions_count

int	edge_functions_count

int	bubble_functions_count

int	first_dof

int	next_dof

int	stride

int	seq

int	mesh_seq

int	was_assigned

NodeData *	ndata
	node data table

ElementData *	edata
	element data table

int	nsize

int	ndata_allocated
	number of items in ndata, allocated space

int	esize

double **	proj_mat

double *	chol_p

Hermes::vector< void * >	bc_data
	Used for bc projection.

Protected Attributes inherited from Hermes::Hermes2D::Mixins::XMLParsing
bool	validate
	Internal.

Friends
class	Space< Scalar >

Additional Inherited Members
Static Public Member Functions inherited from Hermes::Hermes2D::Space< Scalar >
static int	get_num_dofs (Hermes::vector< const Space< Scalar > * > spaces)
	Returns the number of basis functions contained in the spaces.

static int	get_num_dofs (Hermes::vector< Space< Scalar > * > spaces)

static int	get_num_dofs (const Space< Scalar > *space)
	Returns the number of basis functions contained in the space.

static int	get_num_dofs (Space< Scalar > *space)

static Space< Scalar > *	load (const char filename, Mesh mesh, bool validate, EssentialBCs< Scalar > essential_bcs=NULL, Shapeset shapeset=NULL)
	Loads a space from a file.

static int	assign_dofs (Hermes::vector< Space< Scalar > * > spaces)
	Assings the degrees of freedom to all Spaces in the Hermes::vector.

static void	update_essential_bc_values (Hermes::vector< Space< Scalar > * > spaces, double time)

static void	update_essential_bc_values (Space< Scalar > *s, double time)

static Node *	get_mid_edge_vertex_node (Element *e, int i, int j)

Static Protected Attributes inherited from Hermes::Hermes2D::Space< Scalar >
static const int	H2D_UNASSIGNED_DOF = -2
	DOF which was not assigned yet.

static const int	H2D_CONSTRAINED_DOF = -1
	DOF which is constrained.

Detailed Description

template<typename Scalar>
class Hermes::Hermes2D::H1Space< Scalar >

H1Space represents a space of continuous Scalar functions over a domain (mesh).
Typical usage:
...
Hermes::Hermes2D::EssentialBCs<double> bcs(&bc_essential1, &bc_essential2, ...);

// Initialize space.
int globalPolynomialOrder = 4;
Hermes::Hermes2D::H1Space<double> space(&mesh, &bcs, globalPolynomialOrder);

Definition at line 44 of file space.h.

Member Function Documentation

template<typename Scalar >

void Hermes::Hermes2D::H1Space< Scalar >::fix_vertex	(	int	id,
		Scalar	value = `0.0`
	)

Removes the degree of freedom from a vertex node with the given id (i.e., its number in the mesh file) and makes it part of the Dirichlet lift with the given value. This is a special-purpose function which normally should not be needed. It is intended for fixing the solution of a system which would otherwise be singular and for some reason a standard Dirichlet condition (with non-zero measure on the boundary) is not suitable.

Definition at line 575 of file space_h1.cpp.

template<typename Scalar>

virtual SpaceType Hermes::Hermes2D::H1Space< Scalar >::get_type ( ) const

inlineprotectedvirtual

Internal. Return type of this space (H1 = HERMES_H1_SPACE, Hcurl = HERMES_HCURL_SPACE, Hdiv = HERMES_HDIV_SPACE, L2 = HERMES_L2_SPACE)

Implements Hermes::Hermes2D::Space< Scalar >.

Definition at line 65 of file space_h1.h.

template<typename Scalar >

void Hermes::Hermes2D::H1Space< Scalar >::post_assign ( )

protectedvirtual

Auxiliary function the descendants may implement to perform additional tasks after the DOFs have been assigned.

Reimplemented from Hermes::Hermes2D::Space< Scalar >.

Definition at line 592 of file space_h1.cpp.

template<typename Scalar >

void Hermes::Hermes2D::H1Space< Scalar >::update_constraints ( )

protectedvirtual

Called by Space to update constraining relationships between shape functions due to hanging nodes in the mesh. As this is space-specific, this function is reimplemented in H1Space and HcurlSpace.

Reimplemented from Hermes::Hermes2D::Space< Scalar >.

Definition at line 567 of file space_h1.cpp.

The documentation for this class was generated from the following files:
