A selector that increases order (i.e., it selects P-refinements only). More...
#include <selector.h>

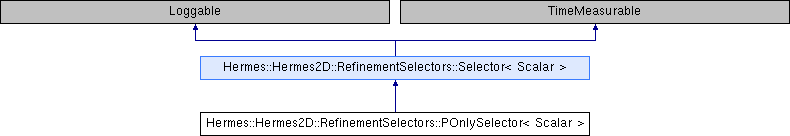

Inheritance diagram for Hermes::Hermes2D::RefinementSelectors::POnlySelector< Scalar >:
Public Member Functions | |
| POnlySelector (int max_order, int order_h_inc, int order_v_inc) | |
| Constructor. More... | |
| virtual Selector< Scalar > * | clone () |
| Cloning for paralelism. | |
Protected Member Functions | |
| virtual bool | select_refinement (Element *element, int quad_order, Solution< Scalar > *rsln, ElementToRefine &refinement) |
| Selects a refinement. More... | |
| virtual void | generate_shared_mesh_orders (const Element *element, const int orig_quad_order, const int refinement, int tgt_quad_orders[H2D_MAX_ELEMENT_SONS], const int *suggested_quad_orders) |
| Generates orders of elements which will be created due to a proposed refinement in another component that shares the same a mesh. More... | |
| Protected Member Functions inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar > | |
| Selector (int max_order=H2DRS_DEFAULT_ORDER) | |
| Constructor. More... | |
Friends | |
| template<typename T > | |
| class | Adapt |
| template<typename T > | |
| class | KellyTypeAdapt |
Additional Inherited Members | |
| Protected Attributes inherited from Hermes::Hermes2D::RefinementSelectors::Selector< Scalar > | |
| const int | max_order |
| bool | isAClone |
| Internal. | |
Detailed Description
template<typename Scalar>
class Hermes::Hermes2D::RefinementSelectors::POnlySelector< Scalar >
A selector that increases order (i.e., it selects P-refinements only).
Definition at line 32 of file function.h.
Constructor & Destructor Documentation
| Hermes::Hermes2D::RefinementSelectors::POnlySelector< Scalar >::POnlySelector | ( | int | max_order, |
| int | order_h_inc, | ||
| int | order_v_inc | ||
| ) |
Constructor.
- Parameters
-
[in] max_order A maximum order used by this selector. If it is H2DRS_DEFAULT_ORDER, a maximum supported order is used. [in] order_h_inc An increase of the horizontal order in a quadrilateral and an order in a triangle. The increase has to be greater or equal to 0. [in] order_v_inc An increase of the vertical order in a quadrilateral. The increase has to be greater or equal to 0.
Definition at line 44 of file selector.cpp.
Member Function Documentation
|
protectedvirtual |
Generates orders of elements which will be created due to a proposed refinement in another component that shares the same a mesh.
If a parameter suggested_quad_orders is NULL, the method uses an encoded order in orig_quad_order. For details, see Selector::generate_shared_mesh_orders.
Implements Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >.
Definition at line 80 of file selector.cpp.
|
protectedvirtual |
Selects a refinement.
Increases an order ising POnlySelector::order_h_inc and POnlySelector::order_v_inc. Fails if the order cannot be increased due to the maximum order. For details, see Selector::select_refinement.
Implements Hermes::Hermes2D::RefinementSelectors::Selector< Scalar >.
Definition at line 54 of file selector.cpp.
The documentation for this class was generated from the following files:
