Hermes::Hermes2D::MeshReaderH2DXML Class Reference

#include <mesh_reader_h2d_xml.h>

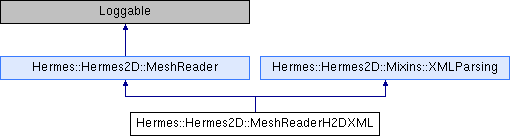

Inheritance diagram for Hermes::Hermes2D::MeshReaderH2DXML:

Public Member Functions
virtual bool	load (const char *filename, Mesh *mesh)
	This method loads a single mesh from a file.
bool	save (const char *filename, Mesh *mesh)
	This method saves a single mesh to a file.
bool	load (const char *filename, Hermes::vector< Mesh * > meshes)
bool	save (const char *filename, Hermes::vector< Mesh * > meshes)
	This method saves multiple meshes according to subdomains in the vector meshes.
Public Member Functions inherited from Hermes::Hermes2D::Mixins::XMLParsing
	XMLParsing ()
	Constructor.
void	set_validation (bool to_set)
	Set to validate / not to validate.

Protected Member Functions
bool	load (std::auto_ptr< XMLMesh::mesh > &parsed_xml_mesh, Mesh *mesh, std::map< unsigned int, unsigned int > &vertex_is)
	Internal method loading contents of parsed_xml_mesh into mesh.
bool	load (std::auto_ptr< XMLSubdomains::domain > &parsed_xml_domain, Mesh *mesh, int *vertex_is, int *element_is, int *edge_is)
	Internal method loading contents of parsed_xml_domain's domain into mesh.
template<typename T >
Nurbs *	load_arc (Mesh *mesh, std::auto_ptr< T > &parsed_xml_entity, int id, Node **en, int p1, int p2, bool skip_check=false)
template<typename T >
Nurbs *	load_nurbs (Mesh *mesh, std::auto_ptr< T > &parsed_xml_entity, int id, Node **en, int p1, int p2, bool skip_check=false)
void	save_arc (Mesh *mesh, int p1, int p2, Nurbs *nurbs, XMLMesh::curves_type &curves)
	Saves one circular arc.
void	save_nurbs (Mesh *mesh, int p1, int p2, Nurbs *nurbs, XMLMesh::curves_type &curves)
	Saves one general NURBS curve.

Additional Inherited Members
Static Protected Member Functions inherited from Hermes::Hermes2D::MeshReader
static bool	is_twin_nurbs (Element *e, int i)
Protected Attributes inherited from Hermes::Hermes2D::Mixins::XMLParsing
bool	validate
	Internal.

Detailed Description

Mesh reader from Hermes2D format

Typical usage: Hermes::Hermes2D::Mesh mesh; Hermes::Hermes2D::MeshReaderH2DXML mloader; try {  mloader.load("mesh.xml", &mesh); } catch(Exceptions::MeshLoadFailureException& e) {  e.print_msg();  return -1; }

The format specification is in hermes2d/xml_schemas/mesh_h2d_xml.xsd

Definition at line 55 of file mesh_reader_h2d_xml.h.

Member Function Documentation

bool Hermes::Hermes2D::MeshReaderH2DXML::load	(	const char *	filename,
		Hermes::vector< Mesh * >	meshes
	)

This method loads multiple meshes according to subdomains described in the meshfile.

Parameters

[in]

meshes

Meshes to be loaded, the number must correspond to the subdomains described in the file.   also the order is determined by the order in the file.

Definition at line 145 of file mesh_reader_h2d_xml.cpp.

template<typename T >

Nurbs * Hermes::Hermes2D::MeshReaderH2DXML::load_arc ( Mesh *  mesh, std::auto_ptr< T > &  parsed_xml_entity, int  id, Node **  en, int  p1, int  p2, bool  skip_check = false  )

protected

Loads one circular arc.

Parameters

[in]	parsed_xml_entity	Either XMLSubdomains::domain or XMLMesh::mesh.
[in]	skip_check	Skip check that the edge exists, in case of subdomains.

Definition at line 1298 of file mesh_reader_h2d_xml.cpp.

template<typename T >

Nurbs * Hermes::Hermes2D::MeshReaderH2DXML::load_nurbs ( Mesh *  mesh, std::auto_ptr< T > &  parsed_xml_entity, int  id, Node **  en, int  p1, int  p2, bool  skip_check = false  )

protected

Loads one general NURBS curve.

Parameters

[in]	parsed_xml_entity	Either XMLSubdomains::domain or XMLMesh::mesh.
[in]	skip_check	Skip check that the edge exists, in case of subdomains.

Definition at line 1354 of file mesh_reader_h2d_xml.cpp.

---

The documentation for this class was generated from the following files:

• mesh_reader_h2d_xml.h
• mesh_reader_h2d_xml.cpp
