Transient Problems III - Adaptivity in Space and Time (10-transient-space-and-time)

Model problem

In this example, the previous two examples are combined together – we use the same model problem and perform adaptivity in space in combination with adaptive time stepping. The adaptive time stepping can be turned off either by setting ADAPTIVE_TIME_STEP_ON = false or by selecting a non-embedded Runge-Kutta method.

Adaptive algorithm

The algorithm is just a merge of the adaptivity algorithms from the previous two examples. Each time step begins with a uniform mesh derefinement that can be done in three possible ways. Inside the time stepping loop, a standard spatial adaptivity loop takes place.

Sample results

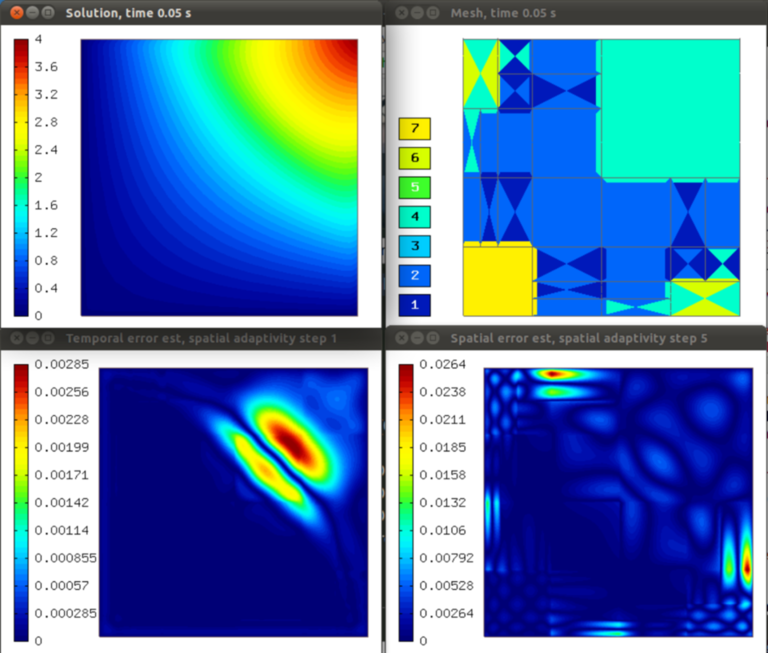

Solution, mesh, temporal error, and spatial error at t = 0.05 s:

Sample screenshot

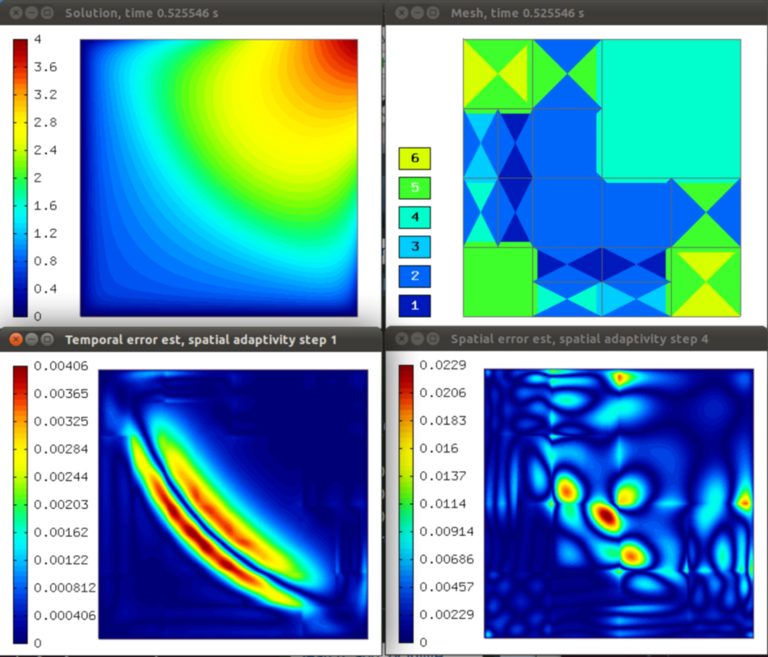

Solution, mesh, temporal error, and spatial error at t = 0.53 s:

Sample screenshot

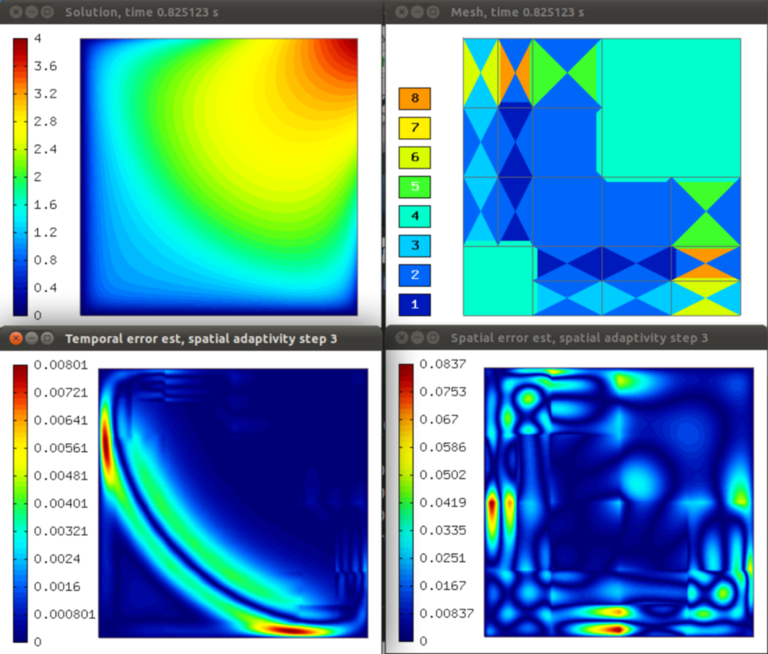

Solution, mesh, temporal error, and spatial error at t = 0.83 s:

Sample screenshot
