Using the Implicit Euler Method (01-implicit-euler)

Model problem

This section describes how a time-integration method can be built into the weak formulation of a PDE (usually this is called Rothe’s method). We will illustrate this on the implicit Euler method applied to a heat transfer equation. The equation describes in a naive approximation how the St. Vitus cathedral in Prague responds to changes in the surrounding air temperature during one 24-hour cycle. The geometry is shown below:

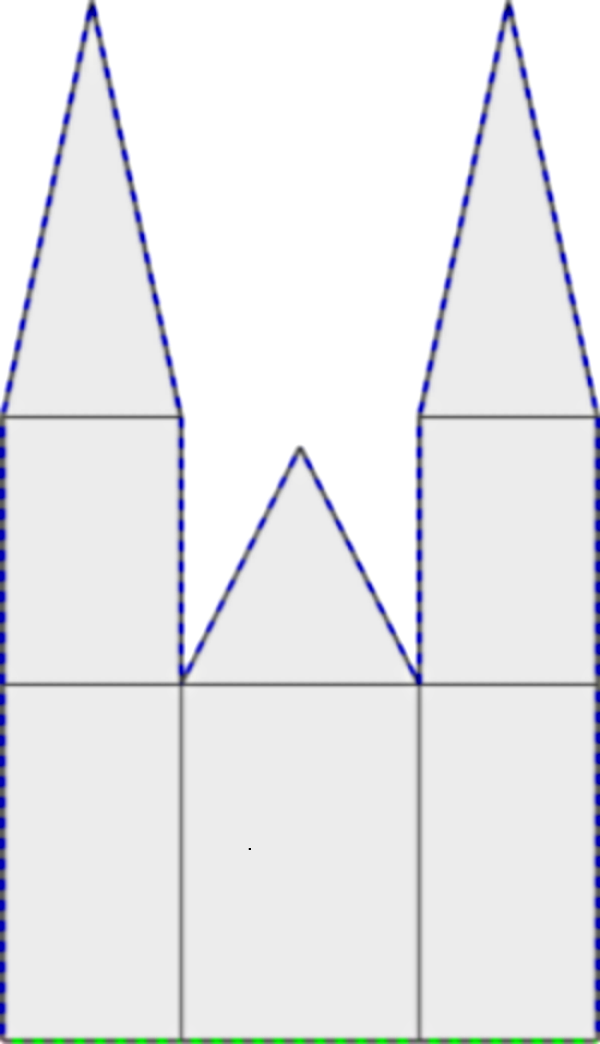

Model geometry.

We assume the standard heat transfer equation

(1)c \varrho\frac{\partial T}{\partial t} - \lambda \Delta T = 0

equipped with a Dirichlet condition

T = T_{init}

on the bottom edge \Gamma_{ground} and a Newton condition

\frac{\partial T}{\partial \nu} = \alpha(T_{ext}(t) - T)

on the rest of the boundary \Gamma_{air}. Here, c is the heat capacity of the material, \varrho the material density, \lambda the thermal conductivity, T_{init} the fixed temperature on the ground (same as the initial temperature of the building), and \alpha the heat transfer coefficient between the building and the surrounding air. The surrounding air temperature T_{ext} is time-dependent of the form

T_{ext}(t) = T_{init} + 10\sin(2\pi t/T_{final}),

where T_{final} is 24 hours (translated into seconds).

Equation (1) is equipped with an initial condition of the form

T(x,y,0) = T_{init}(x,y) \ \ \ \mbox{in} \ \Omega.

Replacing in (1) the temporal derivative with the backward time difference, we obtain

c \varrho\frac{T^{n+1} - T^n}{\tau} - \lambda \Delta T^{n+1} = 0.

Weak formulation

The corresponding weak formulation reads

\int_{\Omega} c \varrho\frac{T^{n+1} - T^n}{\tau}v + \int_{\Omega} \lambda \nabla T^{n+1}\cdot \nabla v + \int_{\Gamma_{air}} \alpha \lambda T^{n+1}v - \int_{\Gamma_{air}} \alpha \lambda T_{ext}(t^{n+1})v = 0.

Defining weak forms

The weak formulation is a combination of default and custom weak forms, see files definitions.h and definitions.cpp.

Passing and accessing previous time level solution

Notice how previous time level solution is passed into the volumetric vector form:

CustomVectorFormVol* vec_form_vol = new CustomVectorFormVol(0, time_step);
vec_form_vol->ext.push_back(prev_time_sln);
add_vector_form(vec_form_vol);

and also how it is accessed from inside the weak form:

Func<double> *temp_prev_time = ext->fn[0];

Keeping the Jacobian if it did not change

As this problem is linear, the Jacobian matrix just needs to be constructed once at the beginning, and it will not change during the computation. Thus instead of the usual method NewtonSolver::solve() we use the method NewtonSolver::solve_keep_jacobian():

// This is important in time-dependent examples, these methods are shared by all the 'calculation' classes, i.e. RungeKutta, NewtonSolver, PicardSolver, LinearSolver, DiscreteProblem, DiscreteProblemLinear.

// Perform Newton's iteration.
try
{
  newton.solve_keep_jacobian(coeff_vec);
}
catch(Hermes::Exceptions::Exception e)
{
  e.printMsg();

}

Sample results

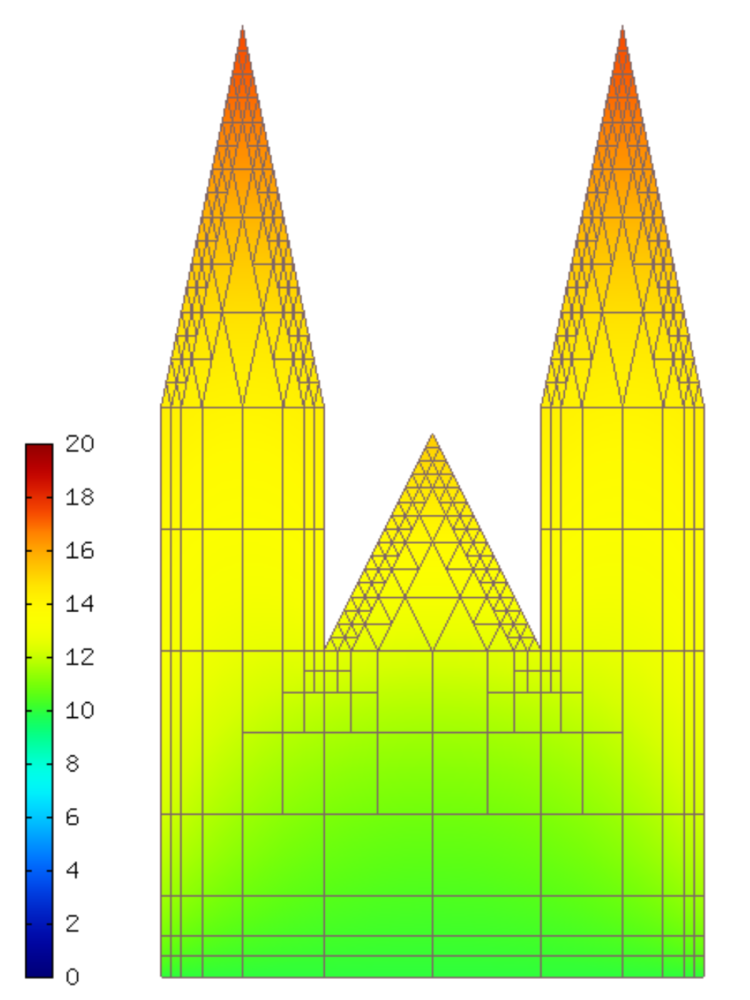

Sample temperature distribution is shown below:

sample result
