Newton BC (06-bc-newton)¶

This example uses the same domain $\Omega$ as the previous one, and the same equation

(1) $-\mbox{div}(\lambda \nabla u) - C_{src} = 0,$

but the Neumann condition on the “Outer” boundary is replaced with a Newton condition of the form

(2) $\lambda \frac{\partial u}{\partial n} = \alpha (T_{ext} - u)$

where $\alpha > 0$ is a heat transfer coefficient and $T_{ext}$ exterior temperature. On the boundary parts “Bottom”, “Left” and “Inner” we keep the nonconstant Dirichlet condition

$u(x, y) = Ax + By + C.$

The weak formulation is

(3) $\int_\Omega \lambda \nabla u \cdot \nabla v \;\mbox{d\bfx} - \int_{\Gamma_{Outer}} \lambda \frac{\partial u}{\partial n}v \;\mbox{dS} - \int_\Omega C_{src} v\;\mbox{d\bfx} = 0.$

Using the Newton condition (2), we obtain

(4) $\int_\Omega \lambda \nabla u \cdot \nabla v \;\mbox{d\bfx} + \int_{\Gamma_{Outer}} \alpha u v \;\mbox{dS} - \int_{\Gamma_{Outer}} \alpha T_{ext} v \;\mbox{dS} - \int_\Omega C_{src} v\;\mbox{d\bfx} = 0.$

Thus in addition to all types of weak forms from the previous example 05-bc-neumann we now also have a surface matrix form

$- \int_{\Gamma_{Outer}} \alpha u v \;\mbox{dS}$

Using a default surface matrix form¶

This integral can be added using the default $H^1$ form DefaultMatrixFormSurf. The header of the custom form CustomWeakFormPoissonNewton is defined in definitions.h:

class CustomWeakFormPoissonNewton : public WeakForm<double>
{
public:
  CustomWeakFormPoissonNewton(std::string mat_al, Hermes1DFunction<double>* lambda_al,
                              std::string mat_cu, Hermes1DFunction<double>* lambda_cu,
                              Hermes2DFunction<double>* vol_src_term, std::string bdy_heat_flux,
                              double alpha, double t_exterior);
};

and its constructor in definitions.cpp:

CustomWeakFormPoissonNewton::CustomWeakFormPoissonNewton(std::string mat_al, Hermes1DFunction<double>* lambda_al,
                                                         std::string mat_cu, Hermes1DFunction<double>* lambda_cu,
                                                         Hermes2DFunction<double>* vol_src_term, std::string bdy_heat_flux,
                                                         double alpha, double t_exterior) : WeakForm<double>(1)
{
  // Jacobian forms - volumetric.
  add_matrix_form(new DefaultJacobianDiffusion<double>(0, 0, mat_al, lambda_al));
  add_matrix_form(new DefaultJacobianDiffusion<double>(0, 0, mat_cu, lambda_cu));

  // Jacobian forms - surface.
  add_matrix_form_surf(new DefaultMatrixFormSurf<double>(0, 0, bdy_heat_flux, new Hermes2DFunction<double>(alpha)));

  // Residual forms - volumetric.
  add_vector_form(new DefaultResidualDiffusion<double>(0, mat_al, lambda_al));
  add_vector_form(new DefaultResidualDiffusion<double>(0, mat_cu, lambda_cu));
  add_vector_form(new DefaultVectorFormVol<double>(0, HERMES_ANY, vol_src_term));

  // Residual forms - surface.
  add_vector_form_surf(new DefaultResidualSurf<double>(0, bdy_heat_flux, new Hermes2DFunction<double>(alpha)));
  add_vector_form_surf(new DefaultVectorFormSurf<double>(0, bdy_heat_flux, new Hermes2DFunction<double>(-alpha * t_exterior)));
};

Sample results¶

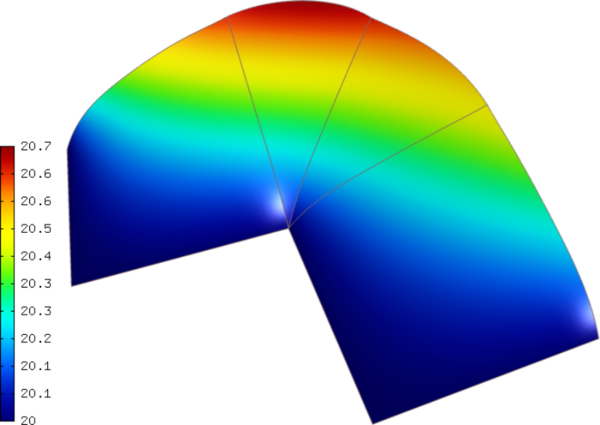

The output for the parameters $C_{src} = 0$ , $\lambda_{Al} = 236$ , $\lambda_{Cu} = 386$ , $\alpha = 5$ , $T_{ext} = 50$ , $A = 0$ , $B = 0$ and $C = 20$ is shown below:
